Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | IDC2.54-nP 8P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Type: | DIP | Packing: | Tray Packing |
|---|---|---|---|
| Contact Materials: | Gold/Tin Plating | Termination: | Solder |
| Contact Resistance(max): | 30m Ohm | OEM/ODM: | Accepted |
| Material: | PBT/ Brass | Sample: | Free |
| High Light: | idc socket connector,insulation displacement connector |
||

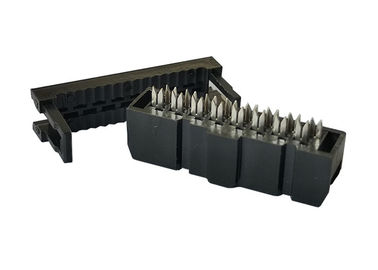

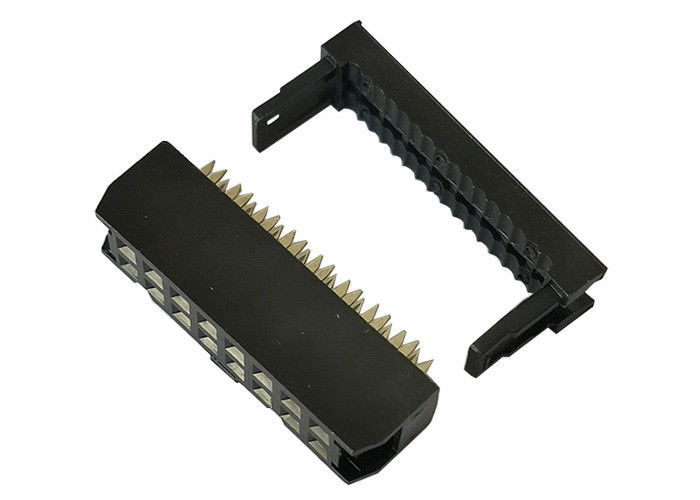

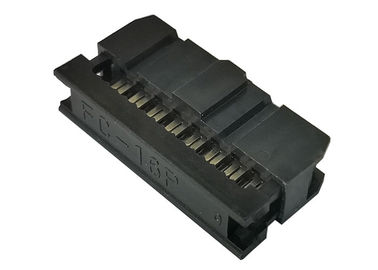

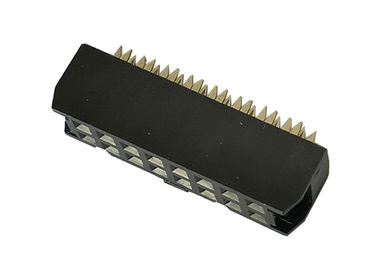

16 Pin Female IDC Wire Circuit Board Ribbon Connectors 2.54mm Solder Termination
|
Current Rating |
3.0AMP |
|
Contact Resistance |
20mΩ Max |
|
Withstand Voltage |
1000V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
|
Operation Temperature |
﹣40℃ to +105℃ |
|
Contact Material |
phosphor Bronze |
|
Contact Plating |
Au over Ni |
|
Insulator Material |
PBT+30%GF UL94V-0 |
|
Product Name: IDC connector |
||
|
1. Product features: contact system has been used to the level of automation test impact, vibration, and temperature cycling also proved their reliability and ruggedness. High temperature insulator up to 260 degrees Celsius reflow soldering process |
||
|
2. Insulating material: nylon 46:UL94V0 contact materials: phosphor bronzeTin plating: nickel PBT |
||
|
3. Scope of application: to be blocked in the circuit between the circuit or isolated bridge of communication, so that the current flow of the circuit, and achieve the intended function. 1 Introduction to PCB power supply and signal 2 discrete wire assembly is connected directly to the PCB |
OEM/ODM Capability
Our complete range of products manufactured according to ISO 9001:2000 guidelines is at your disposal.
OEM services encompass buyers logo or label, designs services plus a whole after sales support package.
Customer Satisfaction
Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Payment Terms
There are many payment methods available such as D/A, D/P, T/T and Paypal.
FAQ
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
5: Do you have stock?
A: We don’t have stock; we’ll start production after receiving PO.
6: How can I get quotation?
A: It is helpful for us to recommend the right item if we know your detail description or specifications. Drawing and quotation will be sent accordingly. Of course, it is best if we have your drawing.
7: Can I have samples?
A: Samples are available for evaluation.
8: Is OEM & ODM available?
A: OEM&ODM are welcome.
