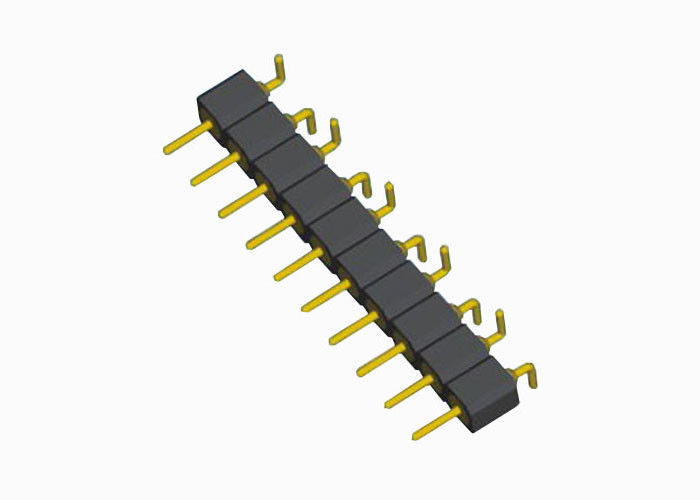

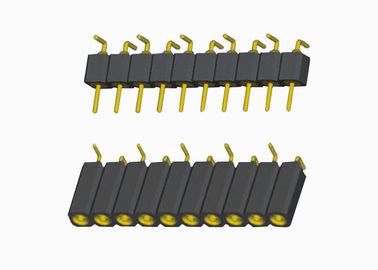

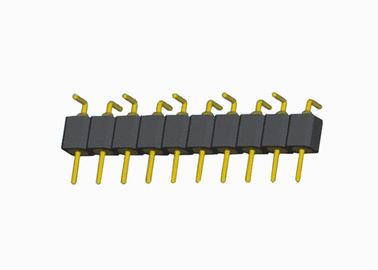

2.54mm Round Female Pin Header Single Row Male And Female Headers SMT Type

1.0mm Round Female Pin Header Single Row Male And Female Headers SMT Type

Description

1. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.

2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.

3. It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

6. According to the Height: 1.0/1.5/2.5mm;

7. Number of stitches: 02 to 80;

8. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

9. Surface treatment: gold plating 1u/3u/5u/10u and even more, thick gold, tin plating, nickel plating (1u=1uinch=1/39.37μm);

10. Material:

10-1: Terminal part: brass, or phosphor bronze;

10-2: Insulator part: PBT, PA46, PA6T, PA66, PA9T, LCP plastic UL94V-0 (UL94 is the standard, V-0 is the fire rating);

Why choose RealRun?

1. RealRun has more than 10 years experiences in the electronic connectors area.

2. The goods with good quality and service are sold to more than 70 countries.

3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.

4. One of the biggest electronic connectors supplier in the China mainland.

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: If happend with the defective products when receiving the goods, how to deal with?

1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.

2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.

3. Second: discuss the solutions.

4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.

Q: Which payment can be accepted:

1. The payment terms can be flexiable depend on the quantity and products.

2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.

Q: Are you manufacture of trading company?

A: We are a manufacture in Shenzhen, China.

Q: How can we get a quote?

A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
