| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH2.54-3xnW 36P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Pin: | 36P |
|---|---|---|---|
| Insulator Color: | Black | Plastic Hight: | 2.5mm |
| Current Rating: | 3A | Withstanding Voltage: | 500V AC |
| High Light: | Four Plastic Pin Header Connector,500V AC Pin Header Connector,36P Three Row Header Connector |
||

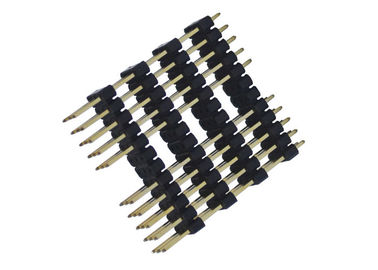

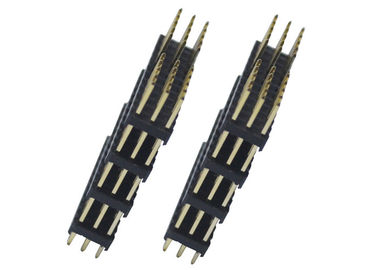

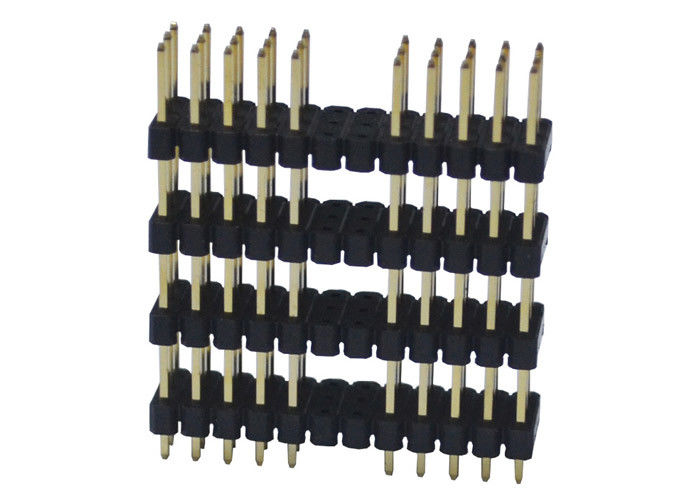

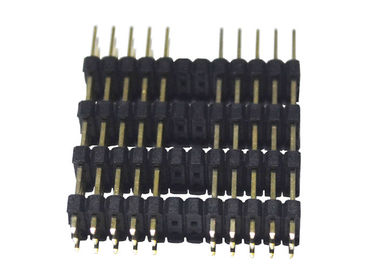

Three Row Pin Header Connector 2.54mm Pitch 180 Degree Type Four Plastic
| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Hight | 2.0mm |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1A |
| Contact Resistance(max) | 20m ohm Max |
| Withstanding Voltage | 500V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole/Horizontal/vertical mount smt |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 2 Pins to 80 Pins |
Description
1. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
2. Common variant on the needle is called the "machine needle" version. The common version is made of stamped and folded metal plates. The needle connector is formed by machining the metal into the required shape. This shape is stronger, the connector is better, and the service life is longer.
3.Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation, for more detail you can directly contact our sales team
Category
1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5mm;
5. Number of stitches: 02 to 80;
