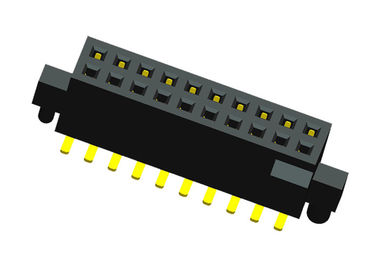

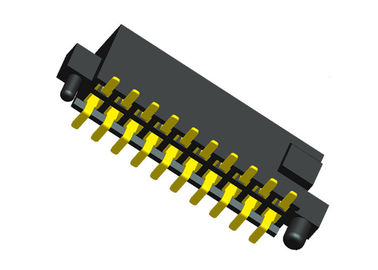

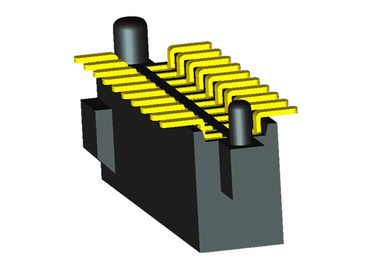

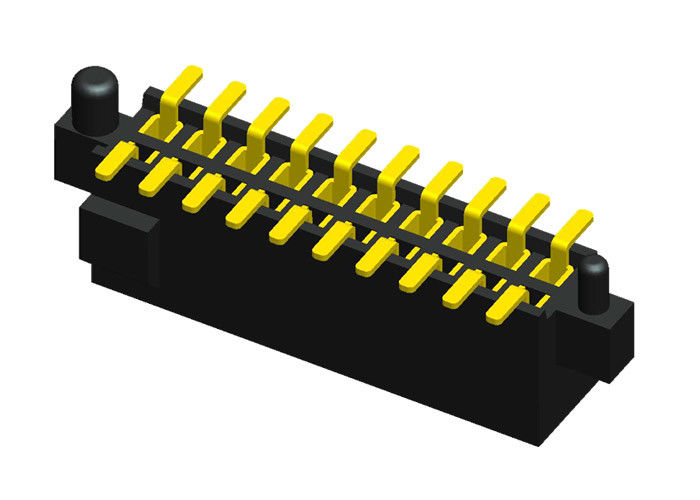

1.27 mm Female Header Connector Double Row 20 Pin Black With Side Column

1.27 mm Female Header Connector Double Row 20 Pin Black With Side Column

Item name: female connector

1.product features: Female header connector is a kind of connector.

2.product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0.

3.scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.




Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;

Packaging Details

Most product not have MOQ,the common connectors are in stock.Small order can be accepted.

Box/Tape & Reel/ Tray/ Tube/ PE Bag

special Packing depend on customer

Shipping

If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.

Payment

Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
