Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-1*nP 16P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Highlight: | round female pin header,male and female headers |
||

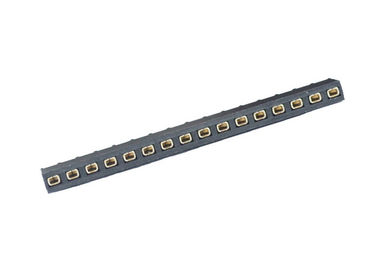

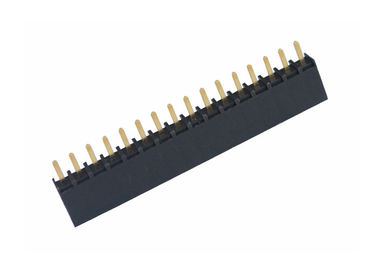

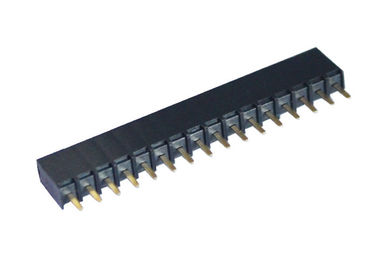

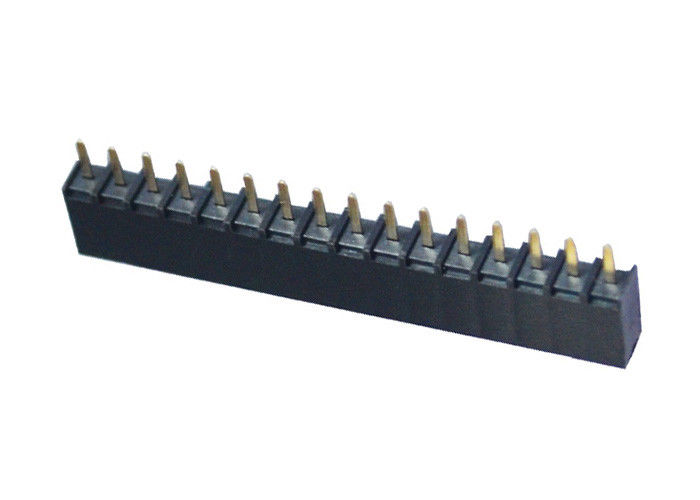

16 Pin Round Female Pin Header 2.54mm Pitch Single Row Straight Type Black
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
| Item name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product material: PA9T/PBT/ brass or phosphor bronze insulation material: plastic UL 94V-0. | ||
| 3. scope of application: Generally, female headers with suited pin headers are used to finish created modules in electronic industry.As below you can find some of scope of application. |
How to Packing
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
FAQ
1. What kinds of products are you supply ?
Our main products are screw terminal blocks, spring terminal blocks, barrier terminal blocks, feed through terminal blocks, din rail terminal blocks, pin header, female header,Box Header,Shrouded Header,Switch,IDC socket,FD Connector,Cable Gland,Micro Jack,Cable Ties,MINI DIN,Flat Cabel,IC socket, D-SUB connector, DIN41612 socket , etc. .
2. Your products according to which kind of stardard certificates ?
All products are in line with the RoHS directive, in full accordance with CE, UL, VDE, SGS, REACH and other standard production.
3. What is your payment terms ?
We accept TT, paypal , L/C , etc.
4. What your MOQ ?
For regural items , we do not request for MOQ , for special items , can discuss later .
5. Can you supply free samples ?
Yes , we can supply 20 pcs samples as free .
6. How about your delivery time ?
3-7 days working time , depends on the quantity that you need .
