Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BTB3.96-nW 6W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Contact Plating: | Gold/Tin Over Nickel | Insulator Flammability: | UL 94V-0 |
|---|---|---|---|
| Pin Available: | 2 Pins To 80 Pins | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 20mΩ Max | Processing Temperature: | 260±5℃ For 10 Seconds |
| High Light: | pcb board to board connectors,board to board power connectors |
||

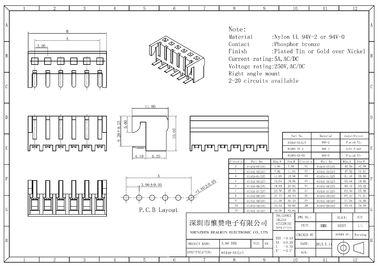

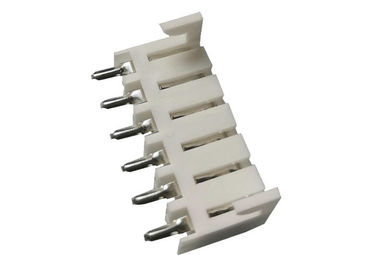

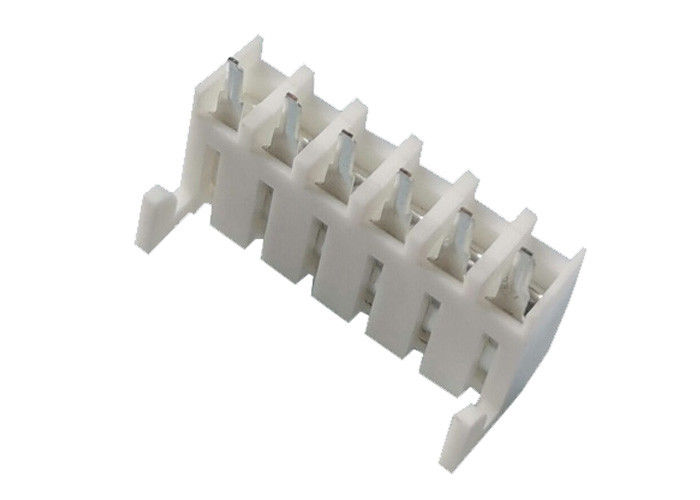

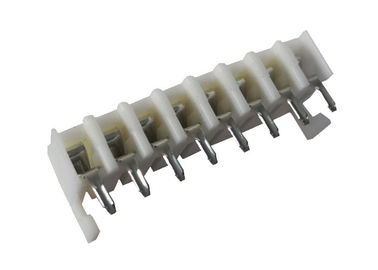

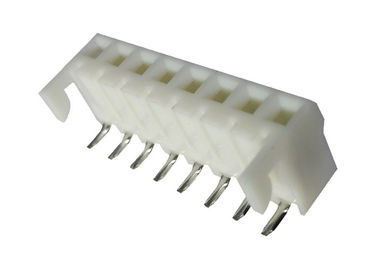

High Reliability BTB Connector Right Angle Board To Board Connector UL 94V 0
|
Name |
Board To Board Connector |
|
Type |
Right Angle type |
|
Insulator Color |
White |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
0.5A |
|
Contact Resistance(max) |
50m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Description
1. Board to board Connector can also be called plugs, widely used in various electrical lines, connecting or disconnecting.
2. The function of the circuit. Improving the reliability of connectors is the responsibility of manufacturers first. However, due to the wide variety of connectors and wide range of applications, proper selection is necessary. Selecting connectors is also an important aspect of improving connector reliability.
Product Application
The thin spacing board to board connector is an optimized interconnection solution, which is suitable for smaller and thinner electronic consumer products. These connectors can cope with the trend of miniaturization in the market. The product line has smaller pin spacing, narrower body and lower socket height, as well as various advantages.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Purpose of service:
1. Lead customer choose a best connection sulotion way.
2. 20pcs free sample. Support more than 20pcs sample for old customer.
3. OEM/ODM service. We have a strong R&D team to support connector design.
4. Quickly response, email reply within 12hours,online inquiry is welcome.
5. Serivce attitude:our business is not just connector supply, it's about deliverying promises.
