| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | DIN41612-2xnW 100W Male |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | Beige | Application: | PCB Board |
|---|---|---|---|
| Contact Resistance(max): | 30m Ohm | Contact Plating: | Gold/Tin Over Nickel |
| Current Rating: | 3A | Insulation Resistance(min): | 1000M Ohm |
| Highlight: | pcb pin connector,2.54 mm pitch header |
||

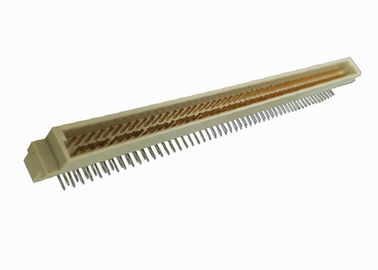

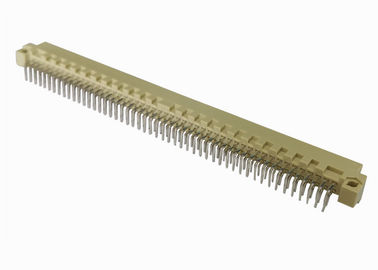

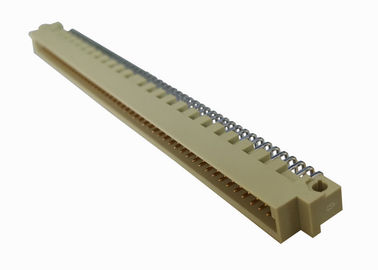

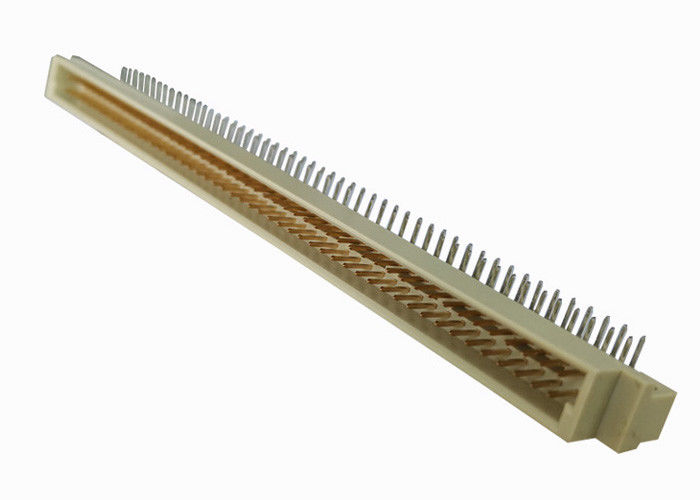

DIN 41612 90 Degree Board To Board Connector 2X50 Pin Header Male Right Angle
| Current Rating | 3.0AMP |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 1000V AC/DC |
| Insulation Resistance | 1000mΩ |
| Operation Temperature | ﹣55℃ to +105℃ |
| Contact Material | Phosphor Bronze |
| Contact Plating | Au And Sn over Ni |
| Fixing Material | Phosphor Bronze |
| Fixing Plating | Sn over Ni |
| Housing Material | PBT+30%GF(UL94V-0) |
Product Name: DIN41612 connector
1. the characteristics: the product precision and reliable performance, good force strong
2. material: 1 material: rubber core PBT plus 30% glass, terminal material: copper alloy.
3. scope of application: the product is widely applied to the backplane and the daughter board communications equipment, industrial control equipment connected with the backboard and the daughter board connection, and telecommunications, aerospace and other fields.
Category
1. Main models: 232, 332, 348, 364, 396, 120, 128.
2. Number of rows: two rows and three rows.
3. Connection form: straight hole / curved needle, vertical connection of curved hole / straight needle, parallel connection of curved hole / curved needle.
(European socket 120P, European socket 128p, straight hole, curved needle, connected to industrial control backplane, connection between backplane and daughter board, switch equipment control board.)
4. Contact points: 20, 32, 48, 64, 96, 120, 128, 160.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
Q: Do you have any MOQ limit for an order?
A: Basically, no! We have an Aliexpress store, it sells goods in retailing qty, you are welcomed to buy there for small qty. But customized items, MOQ yes!
Q. If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
