Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FFC1.0-2*nP 18P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Gender: | Male | Pitch: | 1.0mm |
|---|---|---|---|
| Withstanding Voltage: | 500V AC | Contact Resistance(max): | 30m Ohm |
| Operating Temperature: | -40~105℃ | Contact Plating: | Gold/Tin Over Nickel |
| Highlight: | flexible flat cable connector,flex ribbon cable connector |
||

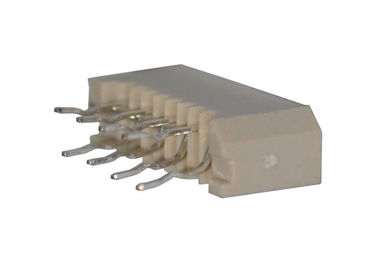

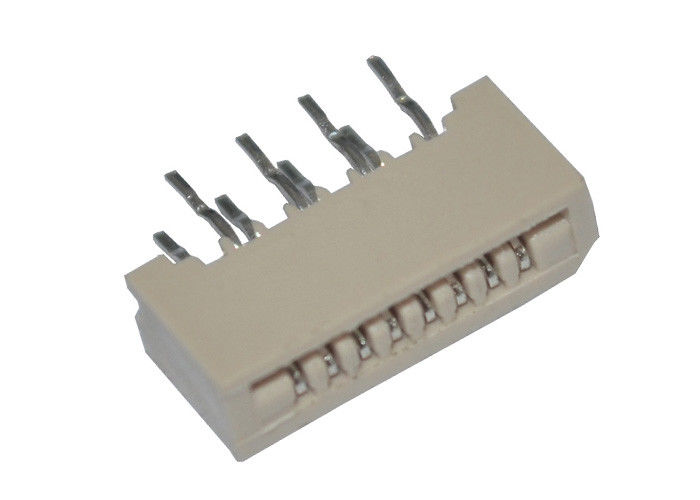

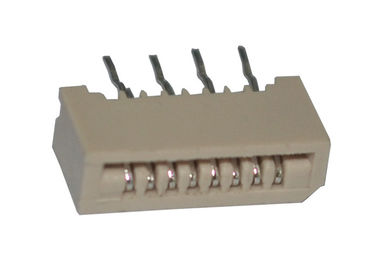

Straight Type FFC FPC Connector 1mm Pitch 18 Pin Metal Brass Contact Material
|
Tye |
FFC FPC connector vertical |
|
Spacing |
1.0mm |
|
PIN number |
4-22,24-30,32-36 |
|
Rated current |
0.5A AC (RMS) |
|
Rated voltage |
50V AC(RMS) / DC |
|
Operating temperature range |
-40º C ~ +85º C |
|
Insulation resistance |
500 MΩ Min |
|
Contact resistance |
20 mΩ Max |
|
Voltage resistance |
200V AC r.m.s |
What is the FPC FFC connector:
The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light, glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector, their function and the circuit FPC FFC flat connection The connector is the same.
Product Application
1. FFC connector is widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
2. FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
5. Professional R & D, production, sales as one of the industrial companies.
6. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities.
7. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification.
8. Main board to board, board to line, line to line, I / O, IC base, storage connector.
