| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RFH1.27*3.8-2*nP 10P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Pins: | 10P |
|---|---|---|---|
| Current Rating: | 3A | Withstanding Voltage: | 500AC |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | round female pin header,male and female headers |
||

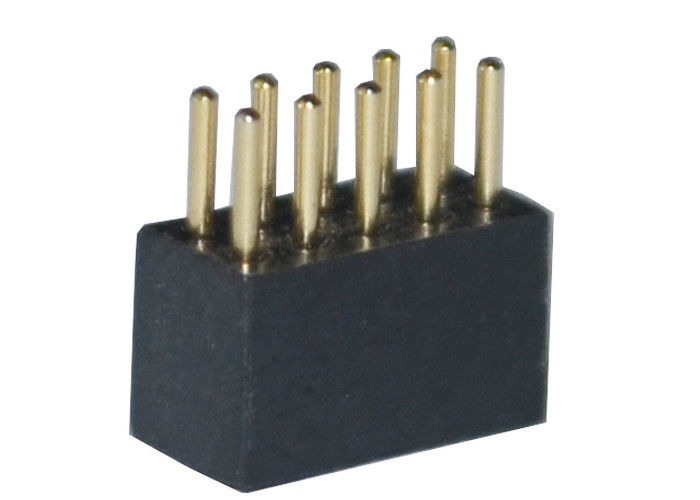

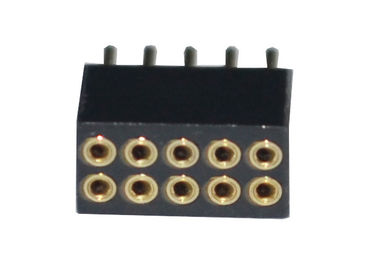

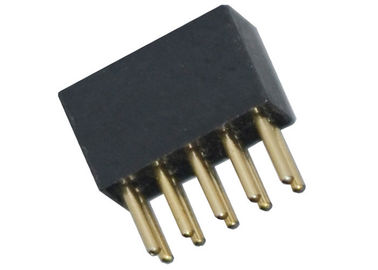

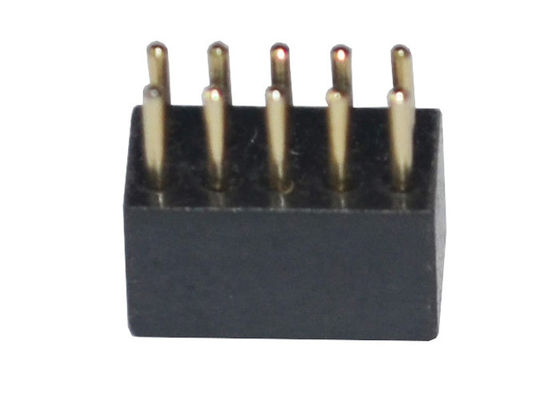

Straight Black Round Female Pin Header Connector 1.27mm Dual Row 180 Degree
Specifications:
| Products Name | Female Header/PCB Connector |
| Pitch | 2.54mm(0.1'') |
| Current Rating | 3.0 AMP |
| Contact Resistance | 30 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 8.5 mm |
| Contact Finish | Gold Flash |
| Pins available | 2 Pins to 80 Pins |
| Color | Black |
| Packaging | Tube |
Product Name: Michined pin connector
1. Straight Round Female Header features: the contact reliability, anti vibration, contact resistance
2. Straight Round Female Header material: PPS, PA46 or PA6T insulator part plastic insulator part fire rating: UL94V-0 contact: brass parts
3. scope of Straight Round Female Header application: PCB computer communication cable, LED integrated circuit IC power car display.
Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal.
Packaging Details
1. Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
2. Box/Tape & Reel/ Tray/ Tube/ PE Bag
3. special Packing depend on customer
Shipping
1. If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
2. If goods is large: Sea or Air shipping method.
3. Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Products are mainly applied in over twenty fields: Digital electronic products, communication electronic products, automobile electronic products, banking terminal electronic products, medical electronic products, etc.
