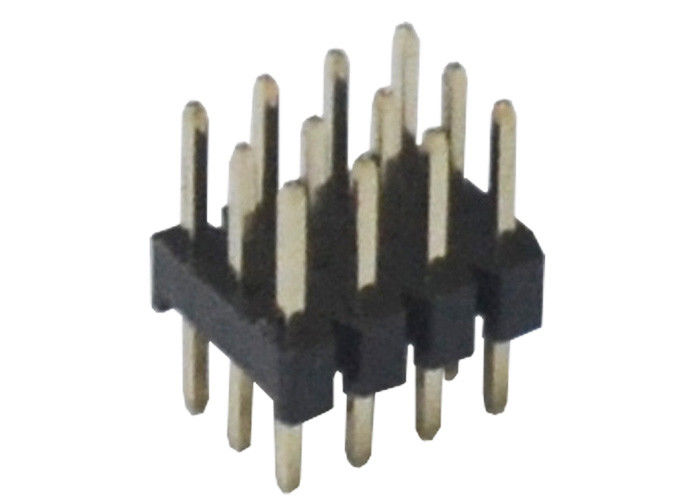

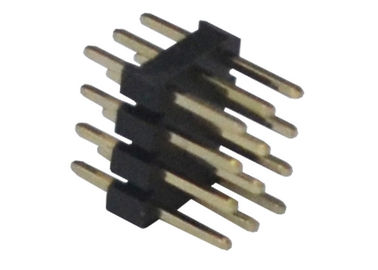

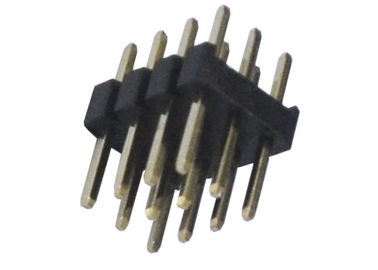

3x4 12 Pin Header Connector Three Row Black 180 Degree DIP Type For PCB

3x4 12 Pin Header Connector Three Row Black 180 Degree DIP Type For PCB

Description

1. Pin header is widely used in LED display, industrial control and power control, instruments and meters, security monitoring, automotive electronics, computers and peripheral equipment, medical devices, household appliances, power supply, various communication equipment, etc

2. It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.

3. Product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. Number of stitches: 02 to 80; 02 to 100;

9. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: If happend with the defective products when receiving the goods, how to deal with?

1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.

2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.

3. Second: discuss the solutions.

4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.

Q: Is it OK to print my logo on the packing?

A: Of course, customized packing accepted!! But it may bring some cost, it depends on the qty and the packing.

Why choose RealRun?

1. Passed ISO9001, ISO14001, ROHS, CE, reach, UL certification.

2. All products are shipped through ROHS test, coating test, salt spray test.

3. Introduce a complete set of excellent and advanced production equipment from abroad, fully automatic production, high efficiency and high output.
