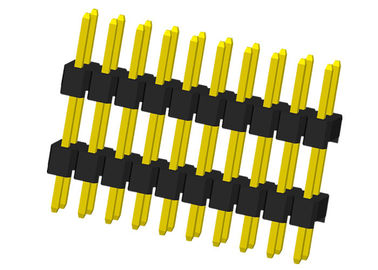

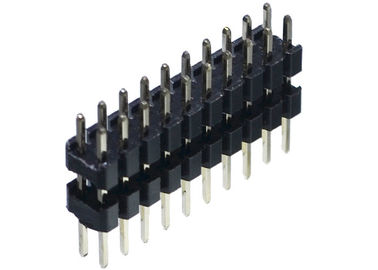

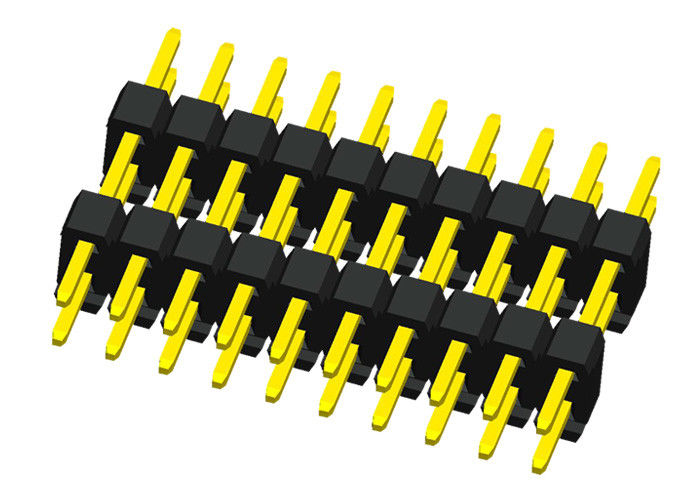

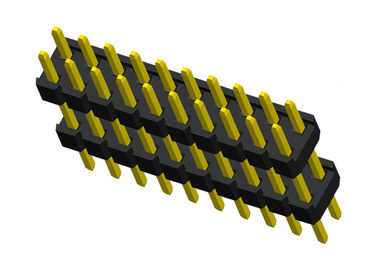

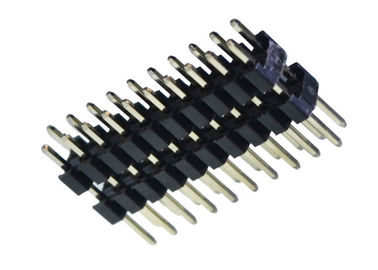

Solder 2x20 Pin Header Connector Dual Row 180 Degree Type Double Plastic

Solder 2x20 Pin Header Connector Dual Row 180 Degree Type Double Plastic

Description

1. Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.

2. Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.

3. It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. Number of stitches: 02 to 80; 02 to 100;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: If happend with the defective products when receiving the goods, how to deal with?

1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.

2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.

3. Second: discuss the solutions.

4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.

Q: Are you manufacture of trading company?

A: We are a manufacture in Shenzhen, China.

Q: Is it OK to print my logo on the packing?

A: Of course, customized packing accepted!! But it may bring some cost, it depends on the qty and the packing.

Why choose RealRun?

1. Professional R & D, production, sales as one of the industrial companies;

2. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities;

3. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification;

4. It mainly cooperates with domestic large and medium-sized well-known enterprises and international well-known multinational companies. Its products are exported to Europe and America, Japan and South Korea, Singapore, and all over the world.
