| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | PH7.62-1xnP 3P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 7.62mm | Pin: | 3P |
|---|---|---|---|
| Insulator Color: | Black | Plastic Hight: | 1.5mm |
| Current Rating: | 3A | Operating Temperature: | -40~105℃ |
| Highlight: | round female pin header,male and female headers |
||

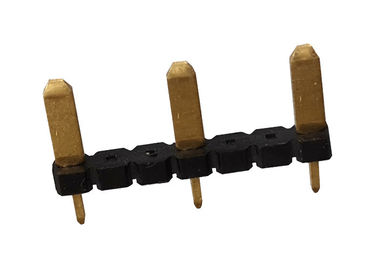

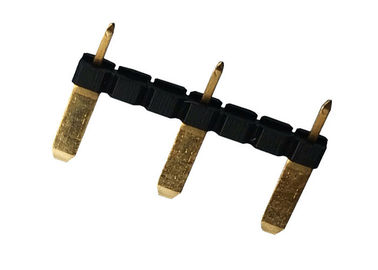

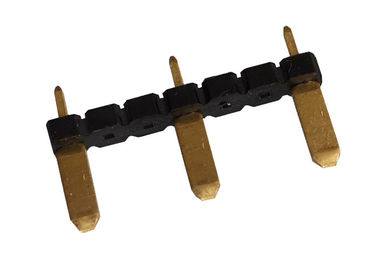

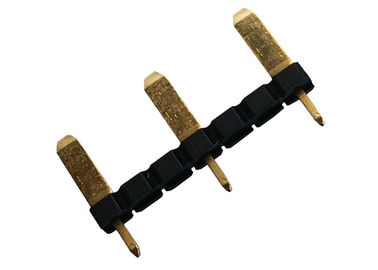

Durable Round Female Pin Header 1x3 Pin Single Row Gold Flash 3.0 AMP
| Product Name: pin connector | ||||||||
| features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
| product function : Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
|
Pitch: 7.62mm |
|||||
| Plastic Hight: 1.5mm | |||||
| Rated Current:3.0AMP | |||||
| Contact Resistance: 30mΩ Max | |||||
| Withstand Voltage:500V AC/DC | |||||
| Insulation Resistance:1000MΩ Min | |||||
| Operation Temperature: -40°c to +105°c | |||||
| Contact Material :brass | |||||
| Contact Plating: Au Over Ni | |||||
| Insulator Material :Polyester (UL94V-0) | |||||
|
Termination: Solder |
|||||
|
Processing Temperature: 260±5℃ for 10 seconds |
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. for all of the part are be use professional anti-electrostatic packaging,compressive packing.
Q2. What is your terms of payment?
A: T/T 100% before delivery. wester union ,Money gram ,Escrow ,for the customer who cooperate with us more than 6-12months ,we will offer limited Net payment .
Q3. How about your delivery time?
A: Generally, it will take 1 -2 days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample quantity if we have ready parts in stock, but the customers have to pay
the courier cost,for the samples cost depend on the items.
