Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH1.0*2.1-1*nP 15P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.0mm | Color: | Black/White |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Plastic Height: | 2.1mm |
| Highlight: | right angle female header,smd female header |
||

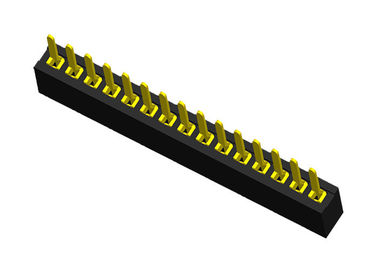

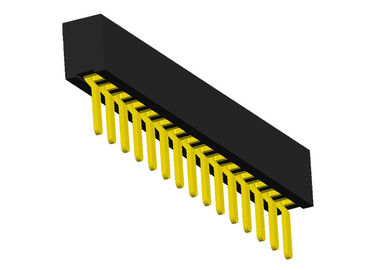

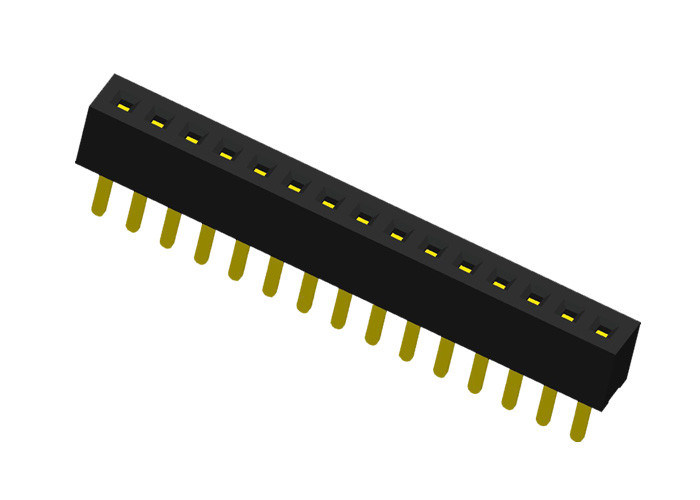

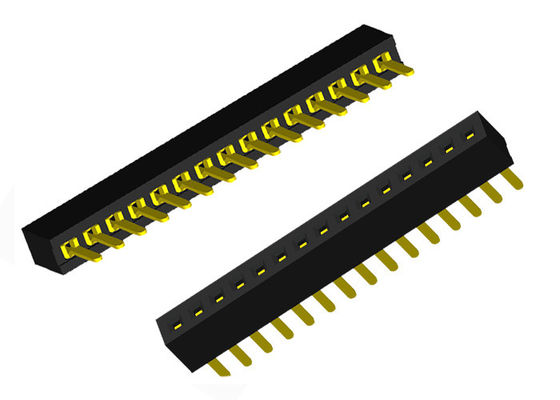

SMT Type 15 Pin Female Header Connector Single Row Straight 1.0mm X 2.1mm
| Name | Female Header Connector |
| Pitch | 1.0mm |
| Plastic Height | 2.1mm |
| Type | Surface Mount SMT type |
| Insulator Color | Black |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 1.0A |
| Contact Resistance(max) | 30m ohm Max |
| Withstand Voltage(for 1 minute) | 500V AC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tape & Reel |
| OEM/ODM | Accepted |
Description
1. Female header connector is a kind of connector.
2. Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission.
1. It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal;
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q. If happend with the defective products when receiving the goods, how to deal with?
1. Next to impossible of the goods will be not good as before the shipping, we have many chekings to confirm the products is no problem. Then if happened, RealRun will bear all the responsibility.
2. First: why this will be happen, how happen, and how to control in the future, a table will be come out for your checking.
3. Second: discuss the solutions.
4. Finally: RealRun will bear all the fees if returning and changing the goods or the loss caused.
Q. which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
