Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH3.96*8.85-1*nP 3P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 3.96mm | Current Rating: | 7A |
|---|---|---|---|
| Contact Resistance(max): | 20M Ohm | Insulation Resistance(min): | 1000M Ohm |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| High Light: | female pin header connector,right angle female header |
||

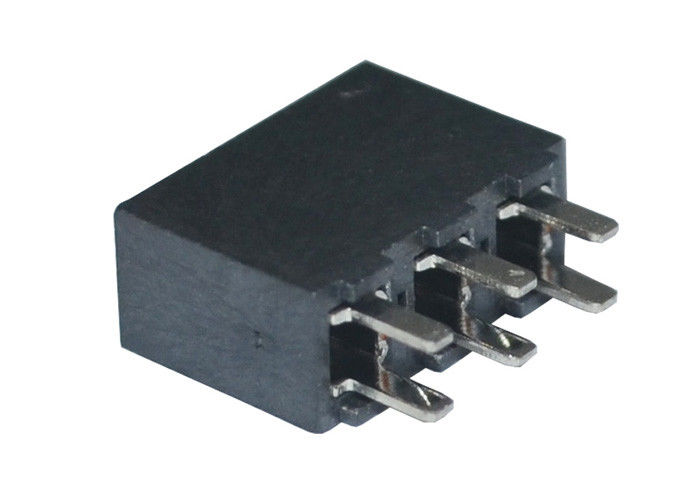

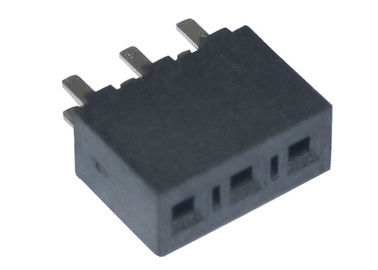

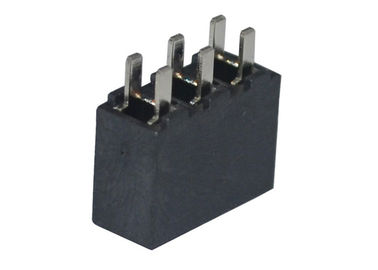

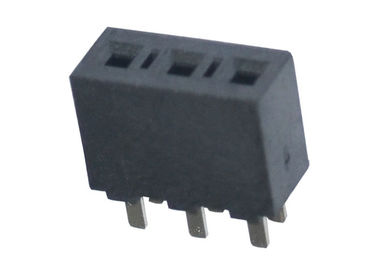

3.96mm Female Header Connector Single Row Straight For Medical Equipment
Specifications:
| Products Name | Female Header/PCB Connector |
| Pitch | 3.96mm |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 7.2mm |
| Contact Finish | Gold Flash |
| Pins available | 4 Pins to 40 Pins |
| Color | Black |
| Packaging | Tube |
What is the Female Header Connector
It is used together with the pin header to form the board to board connection; or it is used together with the electron beam end to form the board to line connection; it can also be used independently for the board to board connection.
Product Application
It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Product features
The use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance.
How to Packing:
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
Payment
Our company accept T/T, Western union, Paypal, Alipay for payment, Please inform us if you have a prefer payment way.
Our Advantage
1. We are specializing in the production of auto connector 10 years.
2. Gained IATF 16949:2016 automotive quality system certification.
3. In the production process, we strictly control the quality of raw materials and products.
4. Created a mold design team for more than 10 years of experience. Advanced mold processing equipment, can develop design molds according to customer requirements.
5. Advanced laboratory equipment for many kinds of experimental tests
6. We supply products to dozens of domestic large wiring harness manufacturers, for Peugeot, Geely, BYD, VW, Toyota, Honda, Dongfeng, Wuling, Great Wall Automobile.
7. The products are mainly exported to Southeast Asia, Europe, the South, and the North Americas.
