Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.0*4.6-2*nP 10P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.0mm | Color: | Black |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PA6T//PA9T/LCP |
| Processing Temperature: | 260±5℃ For 10 Seconds | Operating Temperature: | -40~105℃ |
| Highlight: | female pin header connector,smd female header |
||

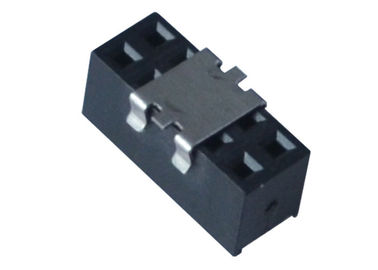

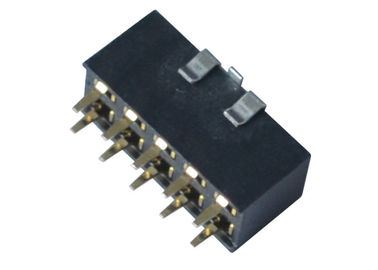

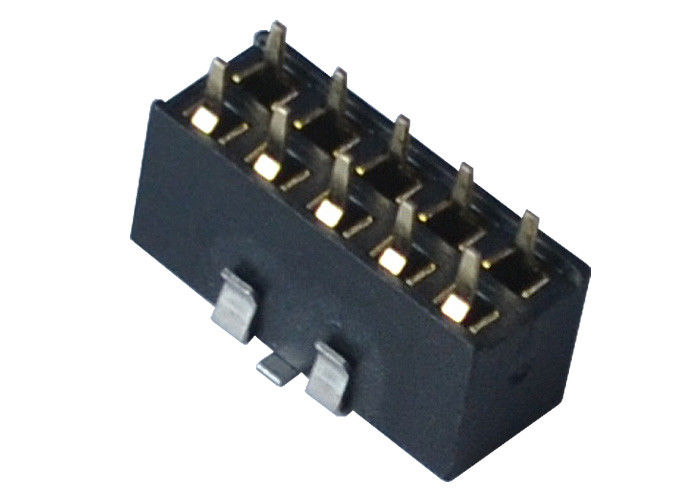

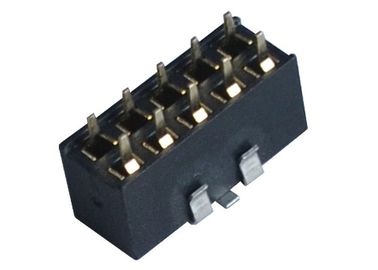

10 Pin Female Header 2.0 Mm Pitch Dual Row Header Connector 180 Degree
| Current Rating | 2.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000mΩ Min |
| Operation Temperature | ﹣40℃ to +105℃ |
| Contact Material | phosphor Bronze |
| Contact Plating | AU over Ni |
| Insulator Material | PA9T+30％GF UL94V-0 |
Product Name: female connector
1. features: the use of a wide range of environmental protection fireproof antioxidant strong conductivity
2. material: PA9T/PBT/ brass or phosphor bronze; dielectric materials: plastic UL 94V-0
3. scope of application: general are widely used in electronics, electrical appliances, instrument connection device mainly plays the role of a current or signal transmission. Usually with pin supporting the use, composition of board to board connection. Or with electronic wiring harness terminal supporting the use of, constitute the board of line connection.
Category
1. According to the spacing: 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm.
2. According to whether it has convex points, the convex points are divided into half convex and full convex.
3. According to the number of rows: single row, double row, three row, four row, etc. at present, there are only four rows at most.
4. According to the installation mode, 180 degrees are represented by s, 90 degrees by W, and SMT by T.
5. According to whether it needs to be increased or not, whether it needs to be divided with positioning columns, there are two kinds of positioning columns, one is the internal positioning column and the other is the ear positioning column.
6. According to the terminal division: Y-type terminal (generally used for plastic height), U-type terminal (generally used for plastic height), four side ring bonding terminal.
Payment & Shipping
Payment
1. We can accept China domestic bank(RMB) is available too,you can choose the best way for yourself
2. For small amount,if all instock,after you arrange payment we will arrange shipment 1-3 days;For quantity amount,usually we require 50% pre-payment,the rest payment need done before delivery
3. Make sure that you have completed all the details information,such as contact person,adress,post
4. code and telephone,etc.
Shipment
1. We can use any one of UPS ,Fedex and DHL.
2. For big quantity,if you choice sea or air shipment,has other requirement need inform us in advance.
3. All terms will be shipped 7-15 working days after receiving payment,if this is an urgent order,we can insist your requirement.
Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 10 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
