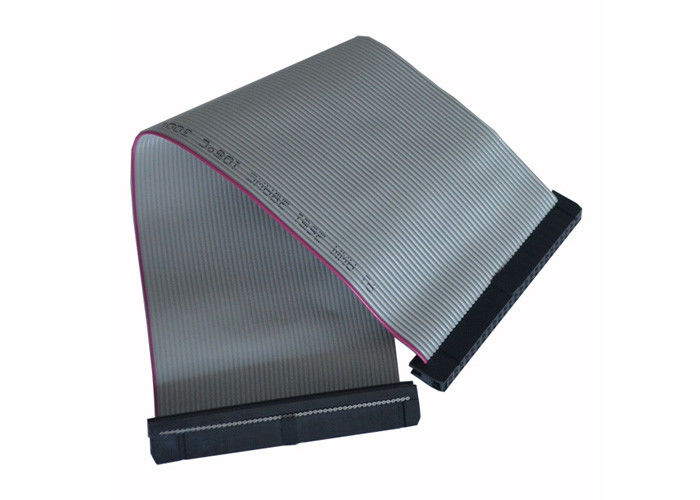

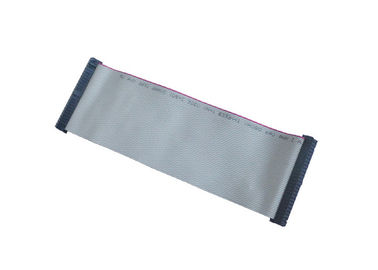

Wire To Board IDC Flat Cable Match Connector 20 Pin Flat Ribbon Cable
Description
1. IDC cable could be customized 1.0mm, 1.27mm, 2.54mm pitch all available.
2. They are often used for connections to PCBs and for links either within equipment or externally. IDC cables have the best ability both in compactness and manageability.
3. We could also provide all kinds of types, such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.
| Connector | IDC Flat Cable |
| Pins available | 06Pins to 40Pins |
| Number of Row | Dual |
| Terminal Finish | Gold over Nickel |
| Cable | UL2651 28AWG 1.27mm Pitch 16 Pins |
| Cable Pins available | 06Pins to 64Pins |
| Color | Gray |
| Length | Customization |
| Style | Wire to Board |
| Crimp Orientation | Same Orientation(First Pin is Red Line) |
| Crimp Tools | Semi-Automatic Machine |
| Test | 100% Open & Short Test |
| Certificate | UL Authentication |
| Equivalent Brand | TE Connectivity/AMP/FCI |
| Packaging | Single PE Bag |
| Shipping method | Fedex/DHL/UPS/TNT or Specify Forwarder |

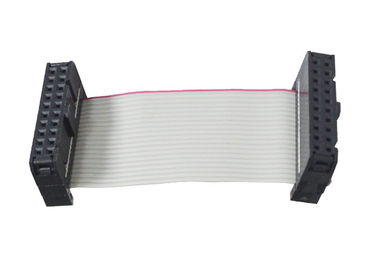

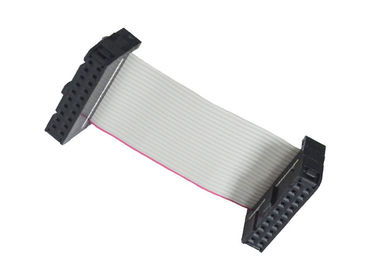

How to distinguish cable direction
1. Same direction
Both bump at the same way.
2. Opposite direction
Both bump at the oppsite way.
3. Up and dowm direction
Both bump at the different way. For the details, you can check as below image description.
