Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FFC0.5-nPBW 40PBW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Gender: | Male | Pitch: | 0.5mm |
|---|---|---|---|
| Application: | PCB Board | Insulator Material: | PBT/PA6T |
| Contact Material: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| Highlight: | flat flex cable connector,flexible flat cable connector |
||

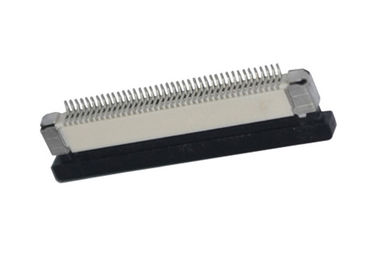

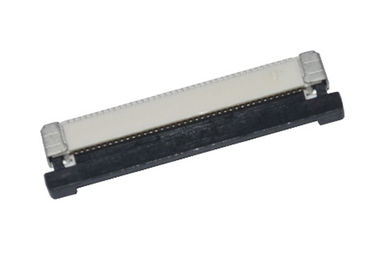

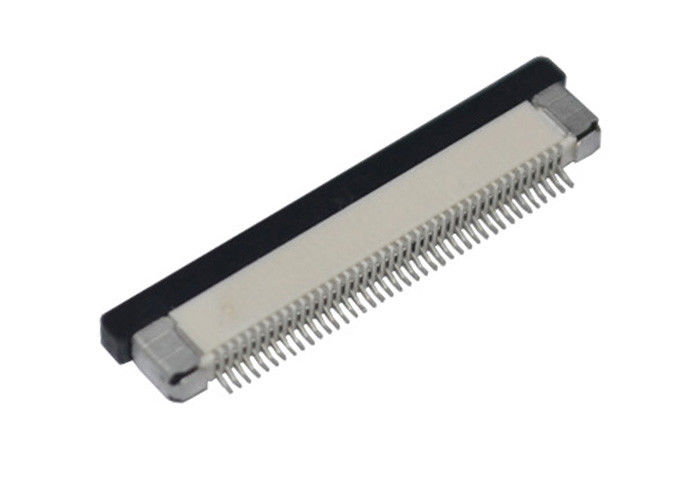

Super Thin Male 40 Pin Fpc Connector 0.5 Mm Pitch Board To Board Connector
|
Name |
FFC Connector |
|
Pitch |
0.5mm |
|
Type |
DIP type |
|
Insulator Color |
Black |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
3A |
|
Contact Resistance(max) |
4m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Description

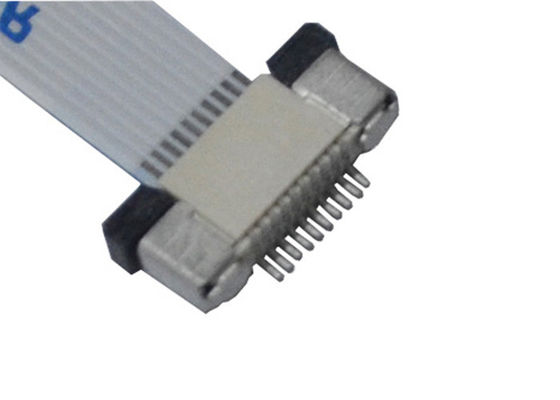

1. FFC connector is flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).
Product Application:
1. FFC connector is widely used in the connection between various printer printheads and mainboards, signal transmission and board connection of products such as plotters, scanners, copiers, audio, liquid crystal appliances, fax machines and various DVD players.
2. FPC connector is mainly used in various fields such as digital communication products, portable electronic products, computer peripheral equipment, measuring instruments, automobile electronics, etc., such as mobile phones, digital cameras, notebook computers, mid, MP3 4 5, handheld game machines, audio systems, etc.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
