Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | 0.5-60P-150mm |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Color: | White/black | Side Contact: | A Or B |
|---|---|---|---|
| Length: | 20 To 10000mm(customized) | Operating Voltage: | 60V AC/DC |
| Conductor: | Tin-plated, Gold-plated, Multi-shield Parts | Contact Resistance(max): | 30m Ohm |
| High Light: | flex ribbon cable,flexible ribbon cable |
||

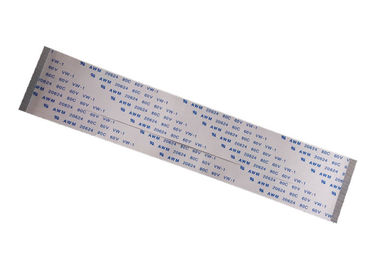

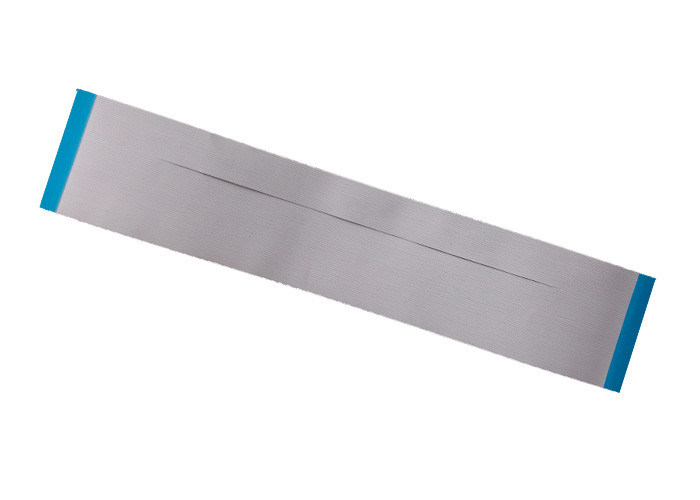

60 Pin FPC Flexible Ribbon Cable Dividing Withstand Voltage For Printer
|
Number of Conductor |
50 Pins |
|
Pitch |
0.5mm±0.10 |
|
Width |
17mm±0.15 |
|
Total Pitch |
15mm±0.10 |
|
Margin |
1.0mm±0.15 |
|
Total Length |
XXmm±3mm |
|
Terminal Thickness |
0.30±0.05 |
|
Insertion Thickness |
0.121 ±0.02 |
|
Conductor Strip Length |
4.0±1.0mm |
|
Supporting Tape Length |
8.0±2.0mm |
|
Conductor Thickness |
0.035±0.005 |
|
Conductor Width |
0.65±0.03 |
|
Slanting |
＜0.50 |
|
Supporting Tape Color |
Blue |
|
Supporting Tape Spec |
0.225mm |
|
Insulation Film Spec |
43um |
What's the Flexible Flat Cable(FFC)
Based on the vast FFC market in China, FFC alignment, also known as Flexile Flap Cable(FFC) Chinese translation: Flexible flat cable, can freely select the number and spacing of wires, making the connection more convenient, greatly reducing the volume of electronic products, reduce production costs, To improve production efficiency, it is most suitable for data transmission cables between mobile components and motherboards, between PCB boards and PCB boards, and in miniaturized electrical equipment. Common specifications include 0.5 mm, 0.8 mm, 1.0 mm, 1.25 mm, 1.27 mm, 1.5 mm, 2.0 mm, 2.54 mm and other spacing flexible cables.
Product Application
FFC Cable widely used in the connection between printing head and main board of various printers, signal transmission and board connection of plotter, scanner, copier, audio, liquid crystal appliance, fax machine, various DVD player and other products. In modern electrical equipment, almost nowhere.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
