Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | R4.2-nP 5W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Insulator Flammability: | UL 94V-0 | Contact Resistance(max): | 30m Ohm |
|---|---|---|---|
| Current Rating: | 3A | OEM/ODM: | Accepted |
| Insulation Resistance(min): | 1000M Ohm | Operating Temperature: | -40~105℃ |
| High Light: | terminal housing connector,wire housing connector |
||

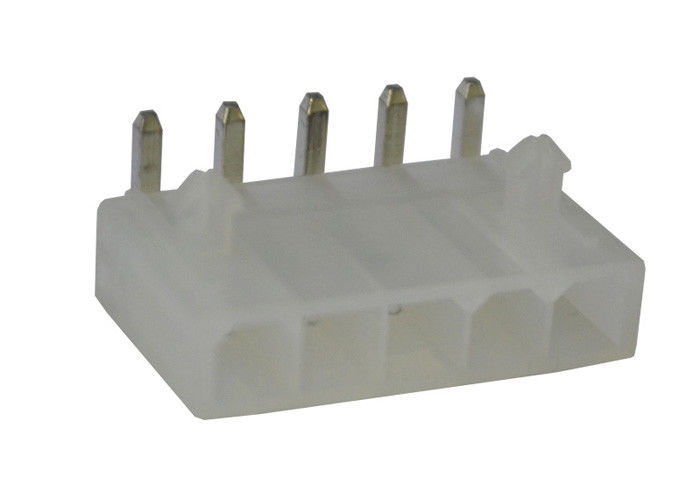

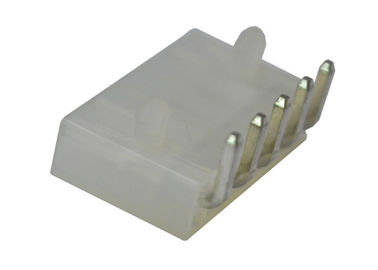

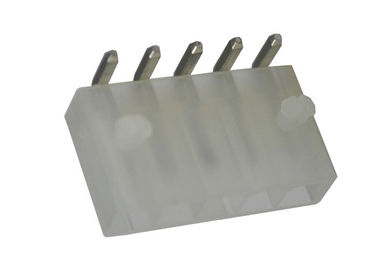

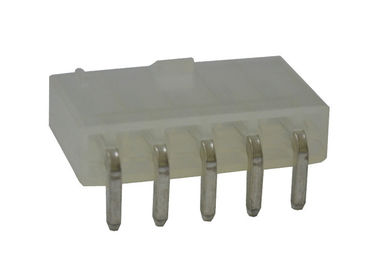

UL 94V 0 Wafer Right Angle Female Header Housing Wire To Board Connector
| Product Name: Wafer connector | ||||||||
| features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to line connection; it can also be used independently for board to board connection. | ||||||||
| product material: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel. | ||||||||
| Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate. |
| Current Rating | 2.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | 500 V AC/DC |
| Insulation Resistance | 1000MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Products Name | Female Header Connector |
| Pitch | 2.00mm(0.079'') |
| Mounting Type | Through Hole |
| Contact Plating | Au over Ni |
| Insulator Material | PA6T+30%GF(UL94V-0) |
Packing & Shipping
1. Housing: bag /SMT Wafer:tape and reel/terminal:tape and reel .Normally,we use the carton with good quality to put all goods in it in case any damage during the delivery.
2. The way of shipment : by sea, by air, or express such as DHL/TNT/UPS etc.
3. Delivery Time: normally 3~7wroking dasy. For urgent orders ,we can shorten the delivery time accordingly.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
5. Professional R & D, production, sales as one of the industrial companies.
6. With advanced production equipment and testing equipment abroad, with advanced product design, development and manufacturing capabilities.
7. Through ISO9001, ISO14001, ROHS, CE, reach, UL certification.
8. Main board to board, board to line, line to line, I / O, IC base, storage connector.
