| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | RJ45-SP-37 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing/Tube Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Place Of Origin: | GuangDong, China | Brand: | RealRun |
|---|---|---|---|
| Applycation: | PCB | Type: | RJ45 Connector |
| Model Number: | RJ45-SP-37 | Number Of Ports: | Single Port |
| Operation: | -40 ~+70℃ | Voltage Rating: | 125V |
| Current Rating: | 1.5 AMP | Contact Resistance: | ≤30m Ω |
| Insulation Resistance: | ≥500MΩ | Dielectric Strength: | 1000V AC/(50hz)/Min |
| Mating And Unmating Force: | 3-20N | Durability: | 750 Cycles Min |
| Housing: | LCP | Contact: | Phosphor Bronze |
| High Light: | Modular Plug Rj45 PCB Connector,LCP Rj45 PCB Connector,750 Cycles Rj45 Pcb Jack |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

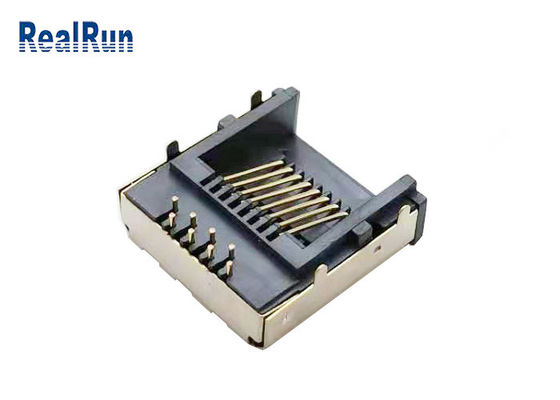

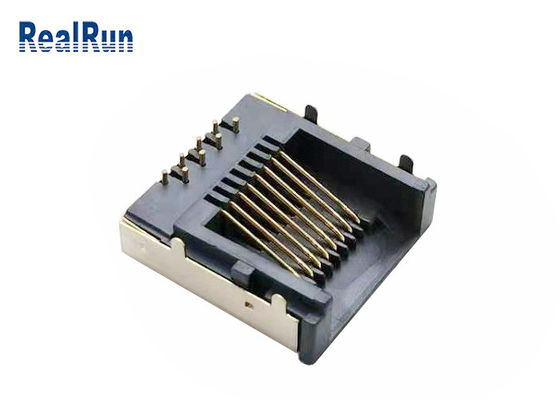

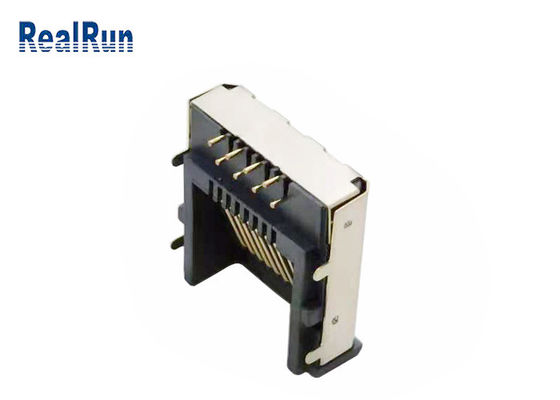

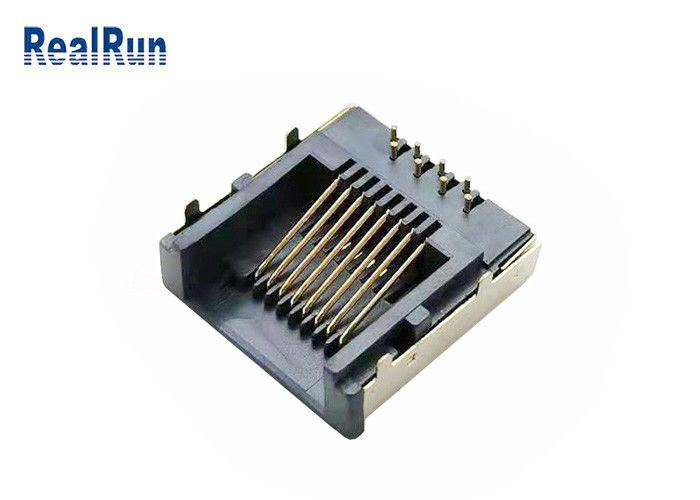

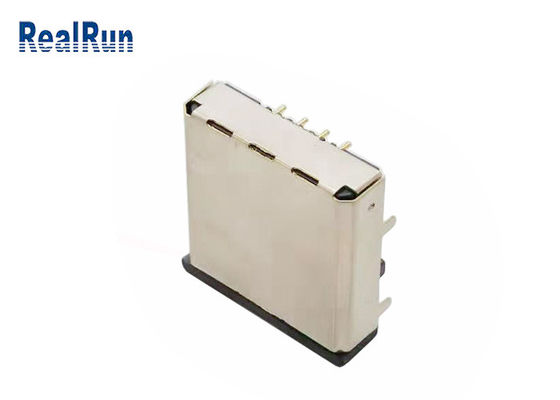

RJ45-SP-37 Metal shielded Modular Plug rj45 Connector Female
Product Features: Inner environmental protection, high temperature resistant rubber core and metal shielding shell can effectively prevent the inner from external force interference. Metal buckle is set in the jack to increase the friction with the plug, so as to make the signal flow and transmission more stable. The product is light and thin, and has a competitive advantage in low price.
Product Material: LCP, H62, Phosphor bronze, Copper alloy.
Scope of Application: Usually used in internal LAN and external network connection. Common RJ45 interface products are: network server, routing cat, hub, personal PC terminal, printer and other equipment.
Specification:
| Product Name | RJ45 Connector |
| Place Of Origin | GuangDong, China |
| Brand | RealRun |
| Applycation | PCB |
| Number Of Ports |
Single Port |
| Gender | Female |
| Temperature Range | -40~+70℃ |
| Voltage Rating | 125V |
| Current Rating | 1.5A |
| Contact Resistance | ≤30m Ω |
| Insulation Resistance | ≥500MΩ |
| Dielectric Strength | 1000V AC/(50hz)/Min |
| Mating and Unmating Force | 3~20N |
| Durability | 750 Cycles Min |
| Contact | Phosphor Bronze Ø0.46mm |
| Housing | Glass Filled Polyester(UL94V-0) |
| Plating | Gold Plating Over Nickel |
| Shield | Copper Alloy Plated Nickel |
| Packing | PE bag, Tube, Tube+Cap, Tray, Tape & Reel |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience, almost all of our products are made by ourselves.
Q: When i can get quotation?
A: After you confirm the products you need, we will offer you a quotation.
Q: Do you accept customization?
A: Yes,we can accept customization as long as it is within our business scope, but you need to provide us with your demand quantity.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method.
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
