| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54×H-2xnP 30Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 5~8workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Gender: | Female | Application: | All Electric Area |
| Type: | DIP Type | Contact Material: | Brass |
| Pitch: | 2.54mm | Number Of Pins: | 30Pin |
| Number Of Rows: | Double Row | ||
| High Light: | 30P Round Pin Female Header,SGS Round Pin Female Header,2.54mm Pitch Plastic Pin Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

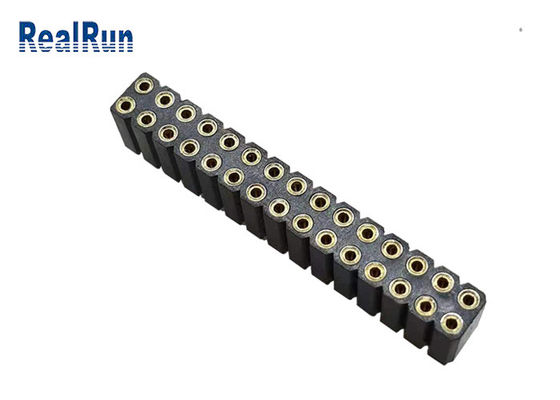

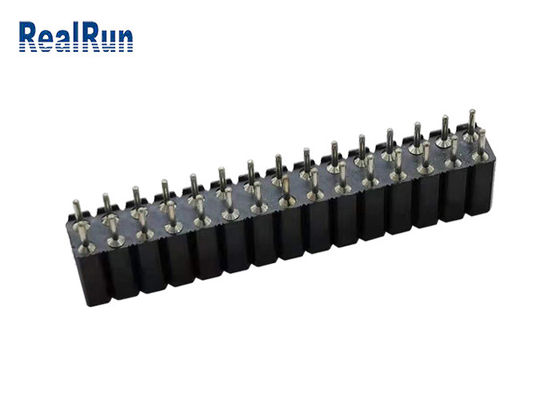

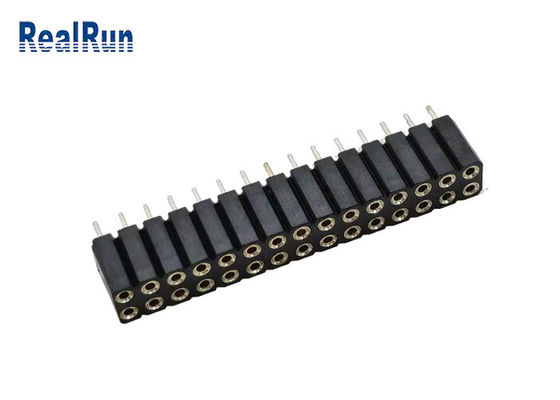

30P Round Pin Female Header 2.54mm Pitch Dip Tin Plated Plastic Height 7.0
Product features: It is usually used together with female header to form board to board connection; or it is used together with electronic harness terminal to form board to cable connection; it can also be used independently for board to board connection.
Product function: Its function is to act as a bridge between the blocked or isolated circuits in the circuit, and to take on the task of current or signal transmission.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.
| Name | Round Female Pin Header Connector/PCB Connector |
| Brand Name | RealRun |
| Place Of Origin | Guangdong,China |
| Pitch | 2.54mm |
| Plastic Hight | 7.0 mm |
| Number Of Rows | Double Row |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL94V-0 |
| Clip(contact 6 finger) | Beryllium copper, heart treated |
| Plating(outer sleeve) |
Tin plated: 2μm/80μ"Ni,5μm/200μ" Sn Gold Plated:2μm/80μ"Ni,gold or Tin plated |
| Insulator(black) | Glass filled thermoplastic polyester UL94V-0 |
| Current Rating | 3Amps/contact max |
| Insulation resistance | 1000MΩ Min |
| Contact Resistance | 4mΩ Max |
| Operating Voltage | 60V AC/DC |
| Contact | Brass |
| Packing | Tube Packing |
| OEM/ODM | Accepted |
| Mounting Type | DIP Type |
| Termination | Customization |
| Contact Shape | Round Pin |
| Pin Available | Customized |
Category
1. According to the spacing: 1.27, 1.778, 2.0, 2.54, 5.0mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5/3.0mm;
5. Number of pins: 01 to 40; 02 to 80;
How to Packing
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing.
4. Reel Packing with Cap, suitable for automatic machine producing.
