Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54×H-1×nP 30Pin |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 5~8workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Brand Name: | RealRun | Insulator: | Black Glass Filled Polyester PPS-GF30-FR UL94V-0 |
|---|---|---|---|
| Sleeve: | Brass CuZn36Pb3(C36000) | Contact Clip/4 Finger: | Gold/Tin Over Nickel |
| Accepted Pin φ: | 0.40 To 0.56mm | Forces: | Insertion: 2N Typ/ Withdrawal:1N Typ |
| Mechanical Life: | Min 500 Cycles | Current Rating: | 3A |
| Contact Resistance: | 10MΩ Max | Dislectric Strength: | Min 1000V RMS |
| High Light: | Pitch 2.54mm Straight Pin Header,180 Degree Straight Pin Header,UL94V-0 Round Pin Header |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

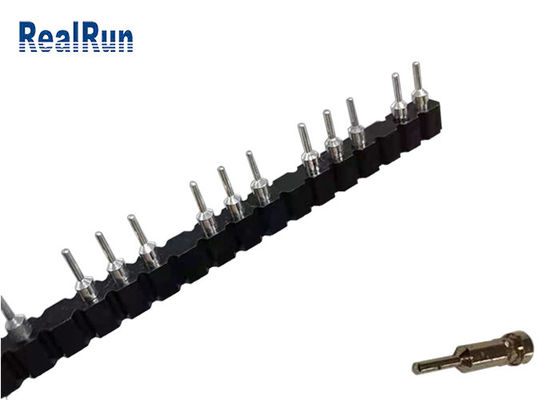

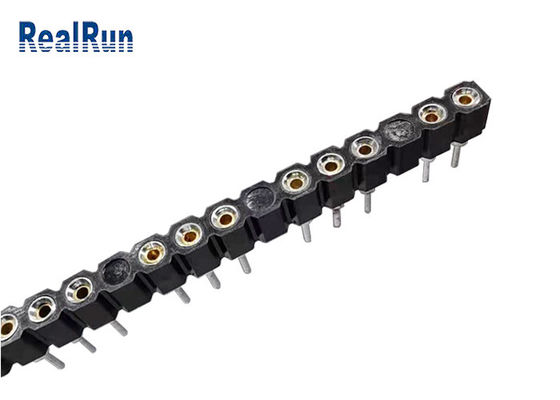

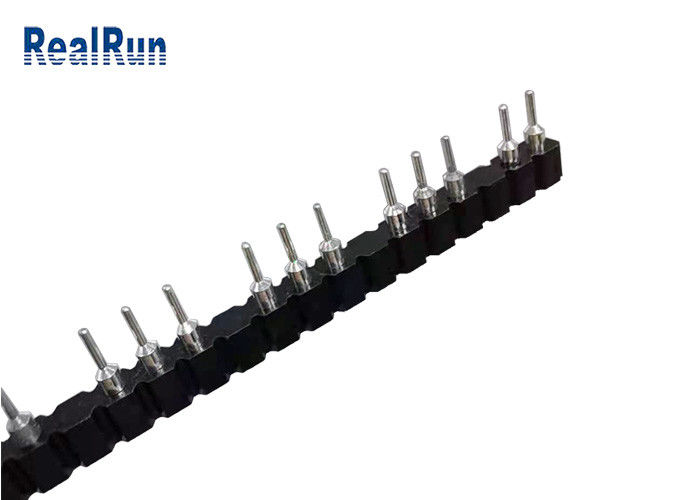

Pitch 2.54mm 1*30 Pin 180 Degree Straight Round Pin Female Header Connector
Product features:environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is like a bridge, connecting the blocking current on both sides, realizing data transmission and signal interworking.
Application scope: Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection board to board, wire to board provides.
| Name | Round Female Pin Header Connector/PCB Connector |
| Brand Name | RealRun |
| Place Of Origin | Guangdong,China |
| Insulator | Black glass filled polyester PPS-GF30-FR UL94V-0 |

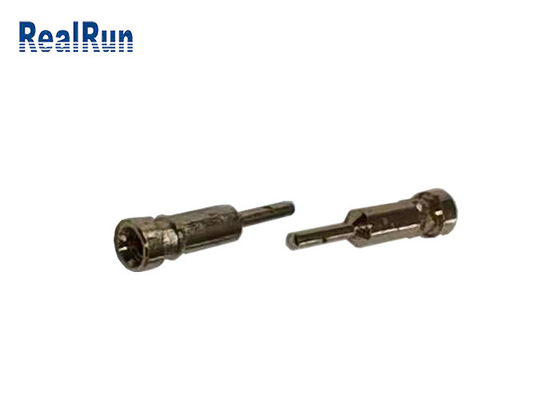

| Sleeve | Brass CuZn36Pb3(C36000) |
| Contact clip/4 finger |
Gold/Tin over Nickel |
| Accepted pinφ | 0.40 to 0.56mm |
| Forces |
Insertion:2N typ. Withdrawal:1N typ. |
| Mechanical life | min 500 cycles |
| Contact resistance | 10mΩ Max |
| Current rating | 3A |
| Dislectric strength | min 1000V RMS |
| Packing | Reel/Tube/Bag Packing |
| OEM/ODM | Accepted |
| Termination | Customization |
| Contact Shape | Round Pin |
| Pin Available | Customized |
Why choose RealRun?
1. Passed ISO9001, ISO14001, ROHS, CE, UL,Reach certification
2. All products are shipped through ROHS test, coating test, salt spray test
3. Introduce a complete set of excellent and advanced production equipment from abroad, fully automatic production, high efficiency and high output
4. In terms of price, our unit price is only 1 / 5 of the imported connector
5. Independent product R & D, product design and mold design common products 15 days sample delivery
Category
1. According to the spacing: 1.27, 1.778, 2.0, 2.54, 5.0mm;
2. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);
3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;
4. According to the Height: 1.0/1.5/2.5/3.0mm;
5. Number of pins: 01 to 40; 02 to 80;
7. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing or depend on customer.
