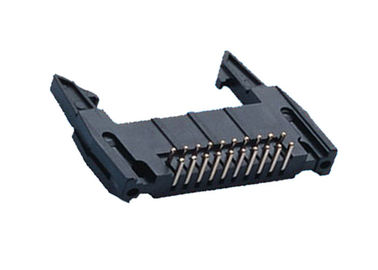

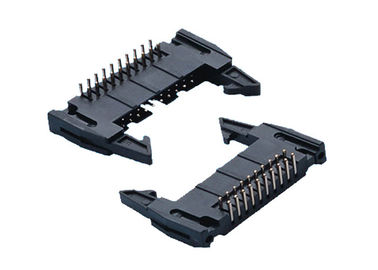

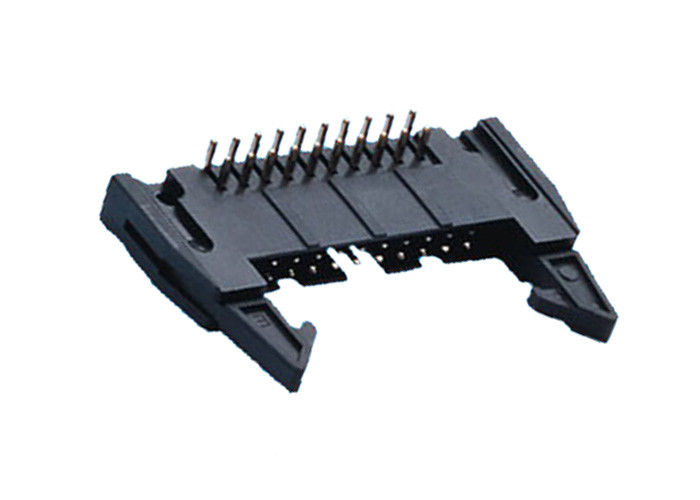

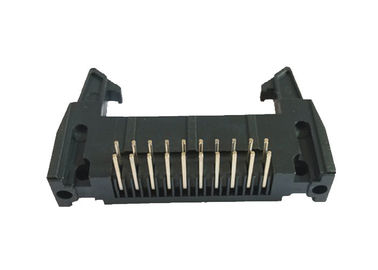

Right Angle Shrouded Header Connector 90 Degree Header Pins 2.54mm 20 Pin
|
Current Rating |
3AMP |
|
Contact Resistance |
20mΩ Max |
|
Withstand Voltage |
500V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
|
Operation Temperature |
-40℃ to +105℃ |
|
Contact Material |
Brass |
|
Contact Plating |
Au or Sn over Ni |
|
Insulator Material |
LCP +30％GF( UL94V-0 ) |
|
Product name: Shrouded Header Connector |
||
|
1. Product features: high temperature resistant to high voltage electrical conductivity |
||
|
2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating |
||
|
3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal |
How to use shrouded header connector
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.
