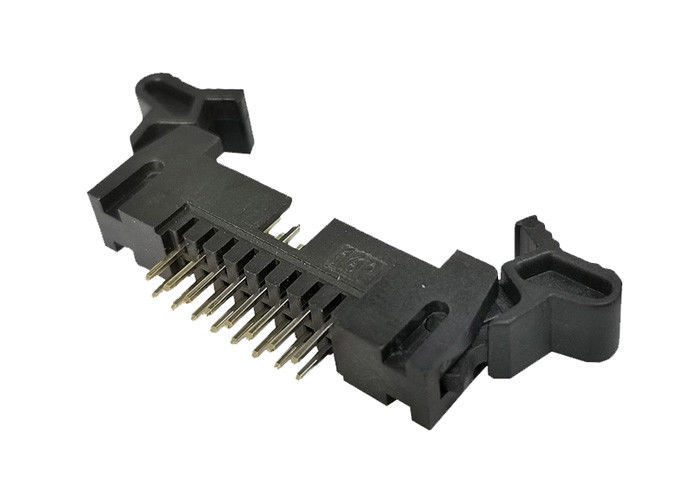

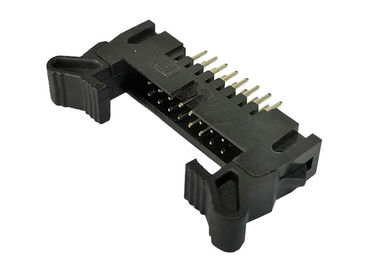

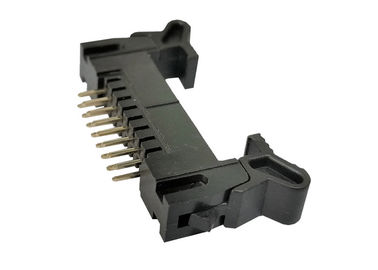

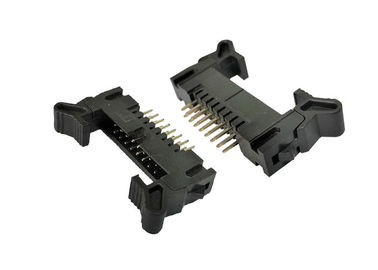

Shrouded 16 Pin Header Connector DIP 2.0mm Pitch Straight Type EH Series

Shrouded 16 Pin Header Connector DIP 2.0mm Pitch Straight Type EH Series

Description

1. features: high temperature resistance, high voltage electrical conductivity.

2. material: PA9T/LCP/PBT plating surface treatment: gold or tin.

3. scope of application: mainly applicable to communications and electronic equipment and the use of data, is welded on the PCB plate, connecting the corresponding specifications of IDC cable and other circuit designers require, reach the circuit. Usually the transmission control signal and if the current.


How to use Shrouded header connector?
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.



Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.

Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.

Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
