Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | BTB-30S4P h=8.2mm Female |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Contact Plating: | Gold/Tin Over Nickel | Withstanding Voltage: | 500VAC/ Min |
|---|---|---|---|
| OEM/ODM: | Accepted | Insulation Resistance: | 1000MΩ Min |
| Contact Resistance: | 20mΩ Max | Processing Temperature: | 260±5℃ For 10 Seconds |
| High Light: | Power Receptacle BTB Connector,0.5AMP LCP Board To Board Connectors,Insulation Resistance BTB Connector |
||

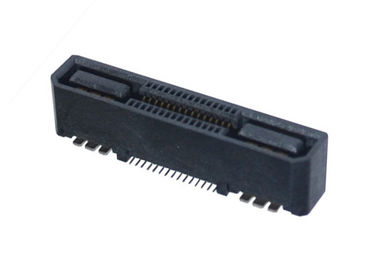

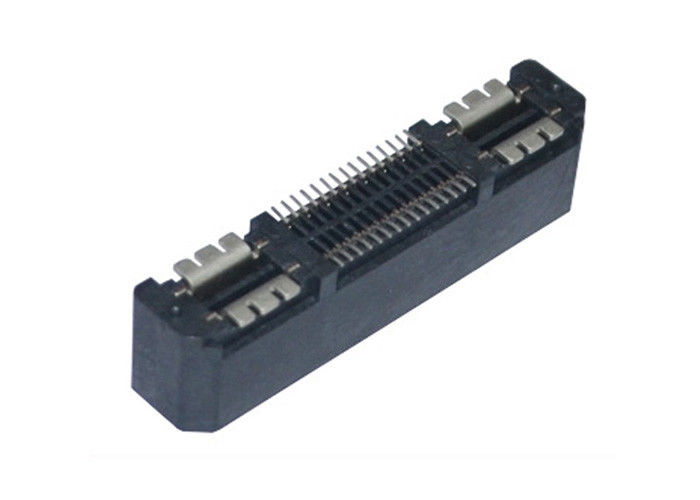

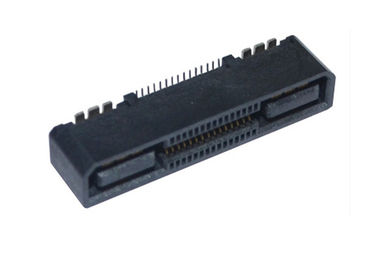

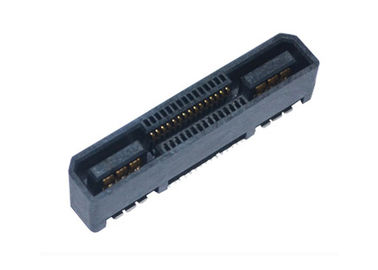

Power Receptacle BTB Connector 1.27 Mm Pitch Connector Insulation Resistance
|
1.Current Rating |
0.5AMP |
|
2.Voltage Rating |
50V AC/DC |
|
3.Contact Resistance |
50milliohm Max |
|
4.Insulation Resistance |
100Megohm Min |
|
5.Operation Temperature |
﹣20℃ to +105℃ |
|
6.Housing Material |
PA9T+30％GF(UL94V-0) |
|
7.CAP Material |
LCP (UL94V-0) |
|
8.Contact Material |
Phosphor Bronze |
|
9.Contact Plating |
Au Or Sn over Ni |
Description
1. Board to board Connector can also be called plugs, widely used in various electrical lines, connecting or disconnecting.
2. The function of the circuit. Improving the reliability of connectors is the responsibility of manufacturers first. However, due to the wide variety of connectors and wide range of applications, proper selection is necessary. Selecting connectors is also an important aspect of improving connector reliability.
Product Application
The thin spacing board to board connector is an optimized interconnection solution, which is suitable for smaller and thinner electronic consumer products. These connectors can cope with the trend of miniaturization in the market. The product line has smaller pin spacing, narrower body and lower socket height, as well as various advantages.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag.
special Packing depend on customer.
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: How can we get a quote?
A: Please offer the specification of the product, such as part No. , quantity, drawing, etc.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
