Specialized in Connector OEM/ODM 13 Years
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FFC0.5-nPBW 12PBW |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Tray Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 100000pcs/day |
| Gender: | Male | Withstanding Voltage: | 500V AC |
|---|---|---|---|
| Application: | PCB Board | Operating Temperature: | -40~105℃ |
| Contact Material: | Brass | Contact Plating: | Gold/Tin Over Nickel |
| High Light: | flat flex cable connector,flex ribbon cable connector |
||

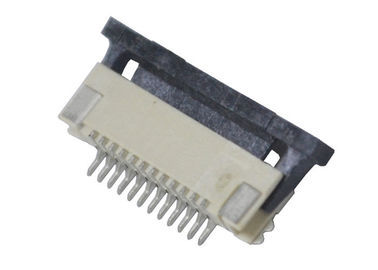

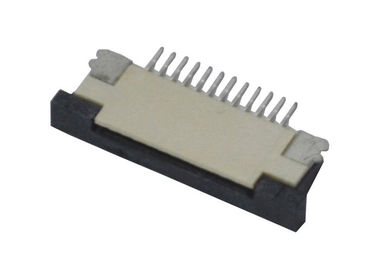

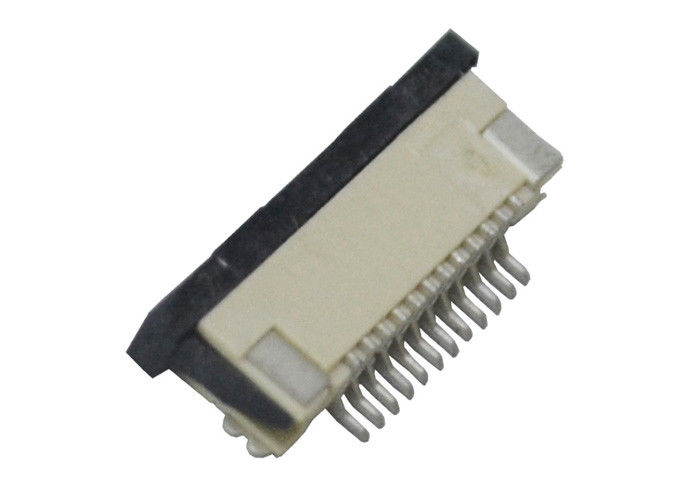

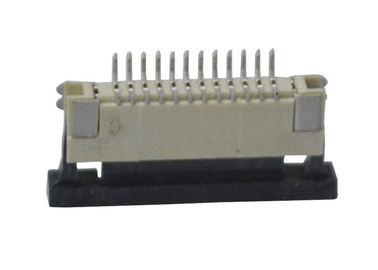

Vertical 12 Pin FFC FPC Connector 0.5mm For Flexible Printed Circuit Board
|
Name |
FFC Connector |
|
Pitch |
0.5mm |
|
Type |
DIP type |
|
Insulator Color |
Black |
|
Insulator Flammability |
UL 94V-0 |
|
Current Rating |
3A |
|
Contact Resistance(max) |
4m ohm Max |
|
Operating Voltage |
60V AC/DC |
|
Insulation Resistance(min) |
1000M ohm Min at DC 500V |
|
Contact materials |
Gold/Tin plating |
|
Contact Plated |
Tin or gold over nickel |
|
Insulator material |
PA6T |
|
Processing Temperature |
-40~105℃ |
|
Packing |
Tray Packing |
|
OEM/ODM |
Accepted |
Description
1. FFC connector is flexible flat cable connector.
2. It is a new type of data cable made of pet insulating material and very thin tinned flat copper wire, which is pressed by high-tech automation equipment production line.
3. It has the advantages of softness, arbitrary bending and folding, thin thickness, small volume, simple connection, convenient disassembly, easy to solve electromagnetic shielding (EMI).
4. FPC connector is a flexible printed circuit board. Generally speaking, it is a PCB connector made of flexible materials (folding and bending materials) for the connection between LCD display and drive circuit (PCB).
FPC future innovation trend:
1. Thickness. The thickness of FPC must be more flexible and thinner.
2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.
3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.
4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth / line spacing must meet higher requirements.
Packaging Details
Most product not have MOQ,the common connectors are in stock.Small order can be accepted.
Box/Tape & Reel/ Tray/ Tube/ PE Bag
special Packing depend on customer
Shipping
If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
If goods is large: Sea or Air shipping method.
Please nitfy me you have any special needs.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted?
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
