| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-2*nT 4T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54mm | Insulator: | PA6T+30%G.F UL94V-0 |
|---|---|---|---|
| Current Rating: | 3A | Contact Resistance(max): | 20M Ohm Max At DC 1A |
| Insulation Resistance(min): | 1000M Ohm Min At DC 500V | Processing Temperature: | 250±5℃ For 10 Seconds |
| Contact: | Phosphor Bronze | Contact Plating: | Gold/Tin Over Nickel |
| High Light: | PA6T SMT Female Header Connector,Oxidation Resistance Female Header Connector,UL94V-0 Double Row Header Connector |
||

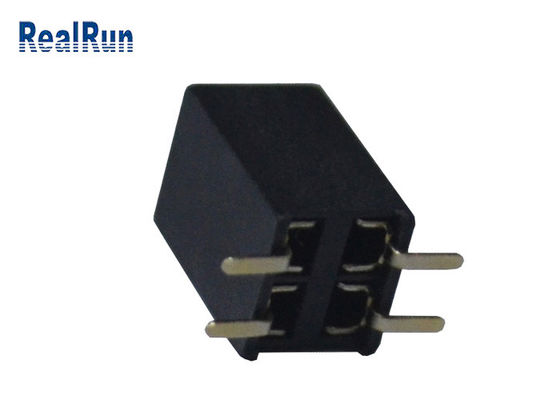

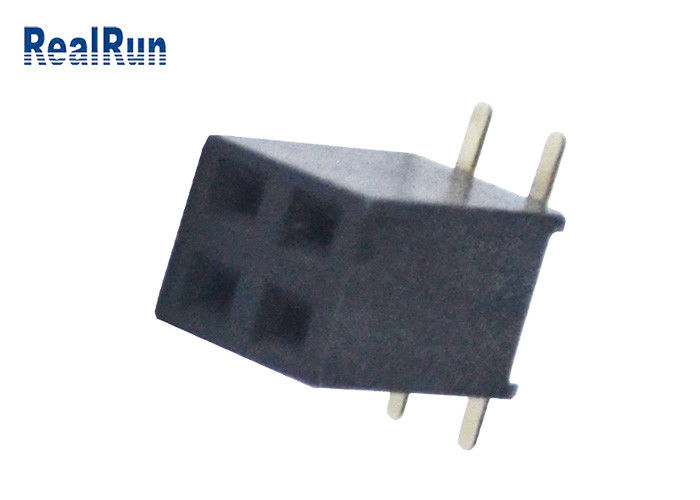

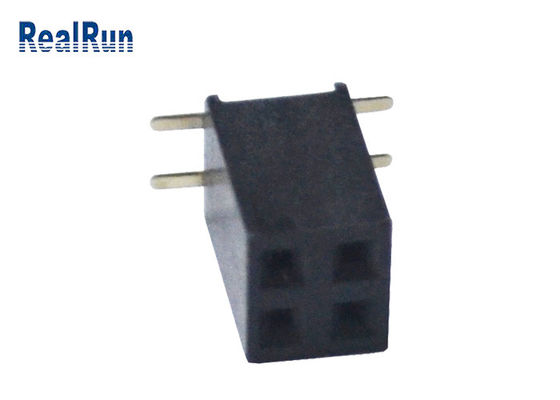

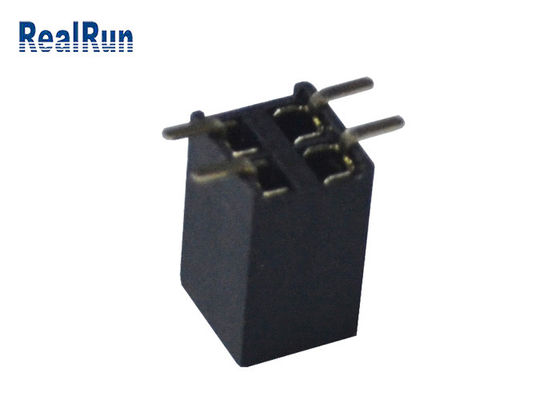

PA6T UL94V-0 2.54Mm Double Row SMT Female Header H=8.5Mm Standard Connector
| Product name: 2.54mm female header connector | ||
| 1. product features: the use of a wide range of environmental protection, high temperature, fire resistance, oxidation resistance. | ||
| 2. product function :Its function is to act as a bridge between the blocked or isolated circuits, and to take on the task of current or signal transmission. | ||
| 3. scope of application: widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection. |
Please feel free to contact us and we will send you the drawings of you need:
Packaging & Shipping
Packaging:
1) Packed in polybag/tray ,and cartons (bulk package )
2) Private packing and label service are available as per your requirement.
Shipping
1.The parts from us are sure to have quality warranty, and they are double tested before shipping.
2.The items can be sent within 3-7 working days after we received the payments.
3.As for mass production, we will confirm the delivery in advance.We will send you’re the products by UPS/DHL/TNT/ FedEx.
FAQ
Q: Do you have stock?
A: We don’t have stock; we’ll start production after receiving PO.
FAQ
Q: Can I get some samples?
A: Yes,some samples are free.
Q: Which payment can be accepted:
A: 1. The payment terms can be flexiable depend on the quantity and products.
2. Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Are you manufacture of trading company?
A: We are a manufacture in Shenzhen, China.
Q: What’s the delivery time?
A: It usually takes about 3~7 working days to produce the products.
