| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | FH2.54*8.5-1*nW 4W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 2.54Mm | Insulator: | PA6T UL94V-0 |
|---|---|---|---|
| Current Rating: | 3.0A | Contact Resistance(max): | 20m Ohm Max At DC 3.0A |
| Insulation Resistance(min): | 1000M Ohm Min At DC 500V | Contact: | Brass |
| Contact Plating: | Gold/Tin Over Nickel | Withstanding Voltage: | 500V AC/minute |
| High Light: | VCD PBT Female Socket Connector,PA6T PCB Female Socket Connector,Right Angle Header Connector UL94V-0 |
||
Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

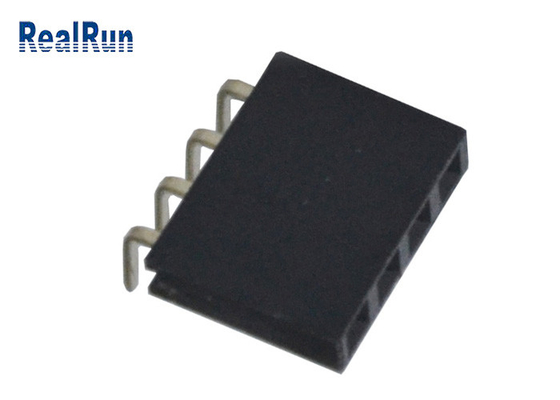

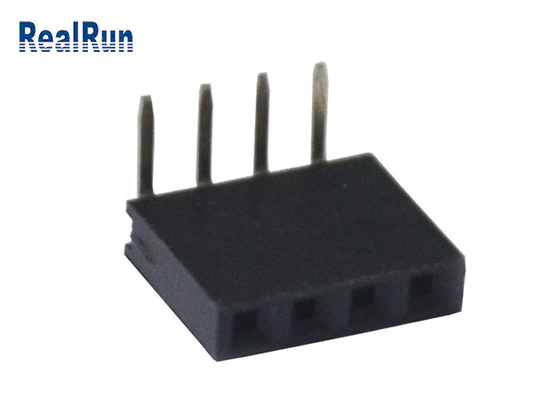

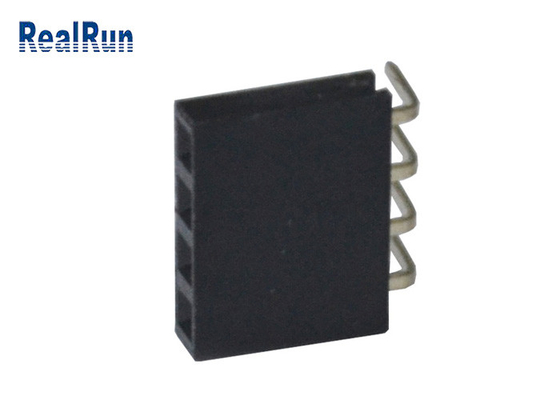

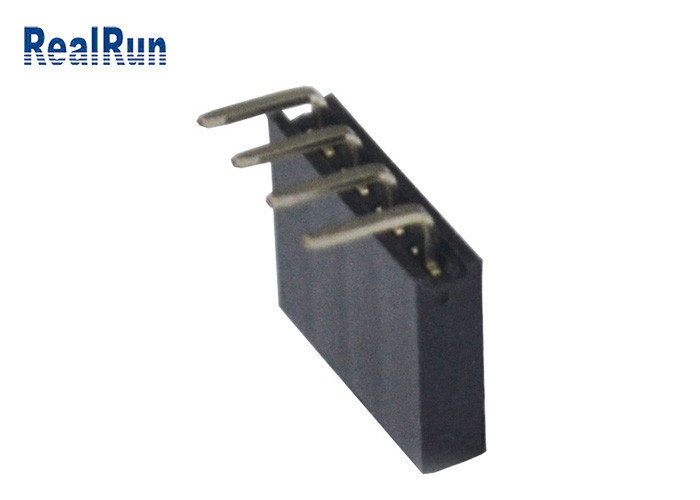

Height 8.5mm Pitch 2.54Mm PCB Socket Dip Right Angle Height Female Header
Product features: Environmental protection and high temperature resistance plastic, high conductivity of brass conductor, durable, stable tin or gold plating performance, oxidation resistance and external factors interference, long service life.
Product function: It is made of brass wire, phosphorus copper wire, copper clad steel wire, pure copper wire, tin plating nickel surface after the bottom, bottom plated nickel.
Application scope: It is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc...
| Name | Pin Header Connector |
| Pitch | 2.54mm |
| Type | Solder |
| Insulator Color | Black |
| Insulator | PBT/PA6T+30%Glass Fiber, (UL94V-0) |
| Operation Temperature | -40℃ to +105℃ |
| Contact Resistance | 20mΩ Max at DC 1.5A |
| Current Rating | 1.5A |
| Contact Material | Brass |
| Withstanding Voltage | 500V AC/minute |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact Plated | Gold/Tin over Nickel |
| Processing Temperature | PBT: 230±5℃ for 10 seconds |
| Insulator material | PA6T PBT LCP |
| Packing | Reel&tape packing |
| OEM/ODM | Accepted |
| Mounting Type | Right Angle Type |
Please feel free to contact us and we will send you the drawings of you need:
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
