| Place of Origin: | China |
| Brand Name: | RealRun |
| Certification: | ISO9001, SGS, Rohs, Reach |
| Model Number: | EH1.27-nP 14P |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CAP+Reel Tape Packing |
| Delivery Time: | 3~7workdays |
| Payment Terms: | L/C, T/T, Western Union,PayPal |
| Supply Ability: | 100000pcs/day |
| Pitch: | 1.27mm | Pins: | 14P |
|---|---|---|---|
| Color: | Black/Grey | Mounting Type: | Through Hole |
| Operating Temperature: | -40~105℃ | Application: | PCB Board |
| High Light: | shrouded pin header,cable to board connector |
||

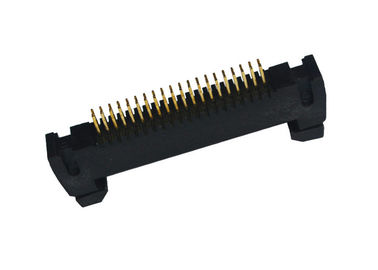

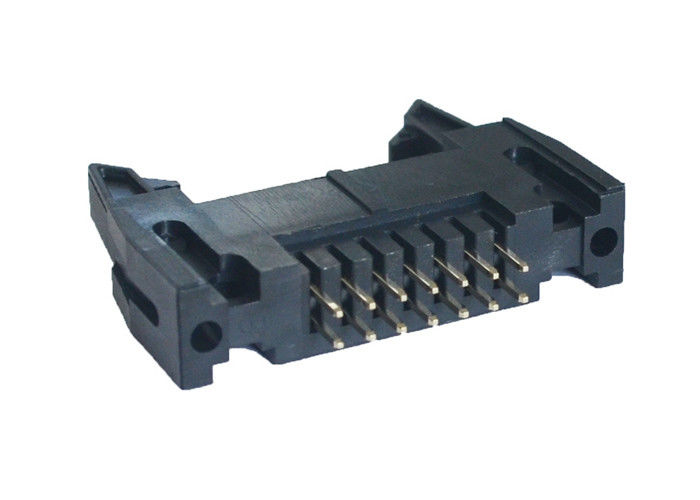

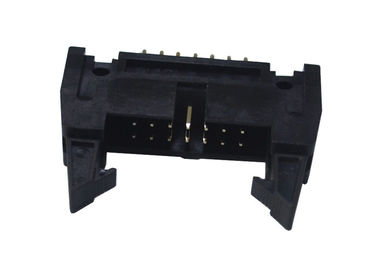

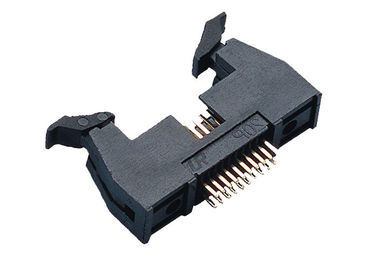

Square Pin Type Straight Pin Header 1.27 Mm Pitch Wire To Board Connector
| Name | Shrouded Header Connector |
| Pitch | 1.27mm |
| Type | DIP type |
| Insulator Color | Black/Grey |
| Insulator Flammability | UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 4m ohm Max |
| Operating Voltage | 60V AC/DC |
| Insulation Resistance(min) | 1000M ohm Min at DC 500V |
| Contact materials | Gold/Tin plating |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T |
| Processing Temperature | -40~105℃ |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Description
1. Ejector header connector is one of many connector types.
2. It is not only a European type connector, but also a variety of connector classified according to the actual use. Because its shape is similar to horns, it is called ejector header connector. Ejector header connector is a very simple internal wiring equipment.
How to use Shrouded header connector
Ejector header connector usually needs to pay attention to the insertion direction, perpendicular to the insertion direction and inclination.
1. Insertion direction: when the connector is fully inserted to u = 14.2, the specified contact resistance shall be ensured.
2. Perpendicular to the insertion direction: if the printed board or fixed board mounted connector is floating mounted, the design of free and fixed board mounted connector shall provide at least 1mm adjustable displacement.
3. Inclination: the design of free and fixed plate mounted connectors allows inclination error, which is ± 4 ° in longitudinal direction and ± 4 ° in transverse direction.
FAQ:
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of application:
Shrouded Header Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
