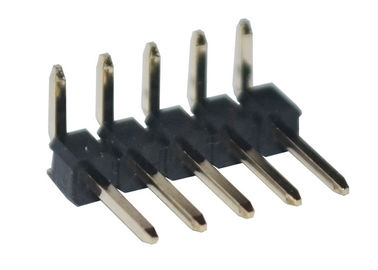

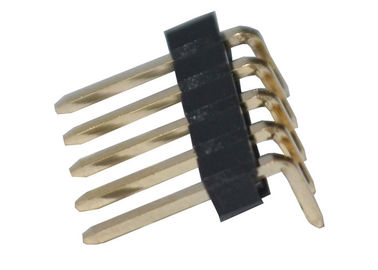

5 Pin Header Connector 2.54mm Single Row Black Right Angle Pcb Header

5 Pin Header Connector 2.54mm Single Row Black Right Angle Pcb Header

What is the Pin Header Connector?

1. Pin header is called universal connector. Based on different designs for PCB, they choose different pitch connectors to meet.
2. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.
3. Regarding pin header electrical and mechanical properties, the same pitch has the same function.

Product Application:

Pin header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.

Category

1. According to the spacing: 0.8, 1.0, 1.27, 2.0, 2.54, 3.96, 5.08mm;

2. According to the height and quantity of plastic (such as single plastic, double plastic, three plastic, etc.).

3. According to the number of rows, it is divided into single row, double row, three row and four row. At present, there are only four rows at most;

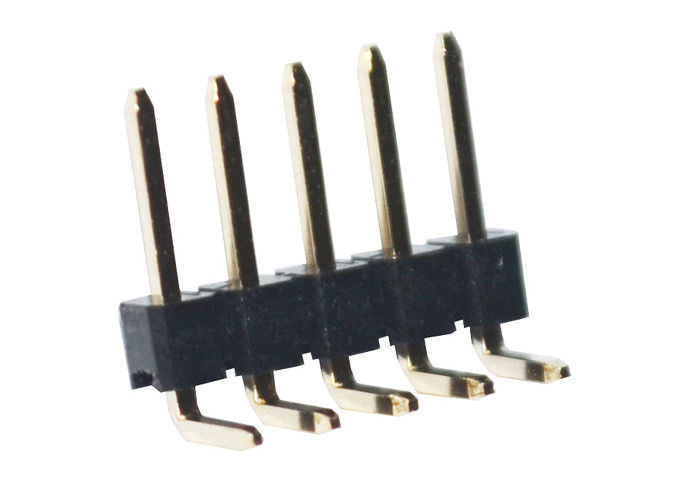

4. According to the installation mode of layout, it is mainly divided into 180 degrees, 90 degrees, SMT(vertical mount SMT, horizontal SMT and right angle SMT);

5. According to whether it needs to be increased and whether it needs to be divided with positioning columns, there are two kinds of positioning columns: one is the internal positioning column, the other is the ear positioning column;

7. Number of stitches: 02 to 80; 02 to 100;

9. Packaging: bag, roll bag, bulk, tube, CAP/Mylar + reel tape packing;

FAQ

Q: Can I get some samples?

A: Yes,some samples are free.

Q: What’s the delivery time?

A: It usually takes about 5~8 workdays to produce the products.

Q: If I don't have any drawings, can you still quote my product?
A: Yes, just provide as many details as possible about your product and quoting department can get started on your quote. As an added service, our qualified engineering staff can produce drawings.

We has already acquired ISO9001, TS16949 quality management system certification; ISO14001, QC080000 environment and management systems certification and OHSAS18001 occupation health safety management system certification. The company main 13 series products obtained American UL & CUL certification, with the No. E248993, E46999. All items are in line with EU RoHS and REACH environmental green requirements.
